5 Connectivity GNSS receiver settings
GNSS receiver settings
The TM-200 Module contains a built-in GNSS receiver. To set up the receiver, you choose:
l The type of antenna you are using
l The correction source you will be using, if any
Note – GNSS status will not show a converging or normal status until a vehicle has been
configured and selected. See GNSSnotification button, 52.
1. After installing the AG25 GNSS antenna, power on the vehicle. This will power on the receiver.
2. Make sure all optional features are unlocked and all subscriptions are activated.
3.
At the Home screen, tap .
4.

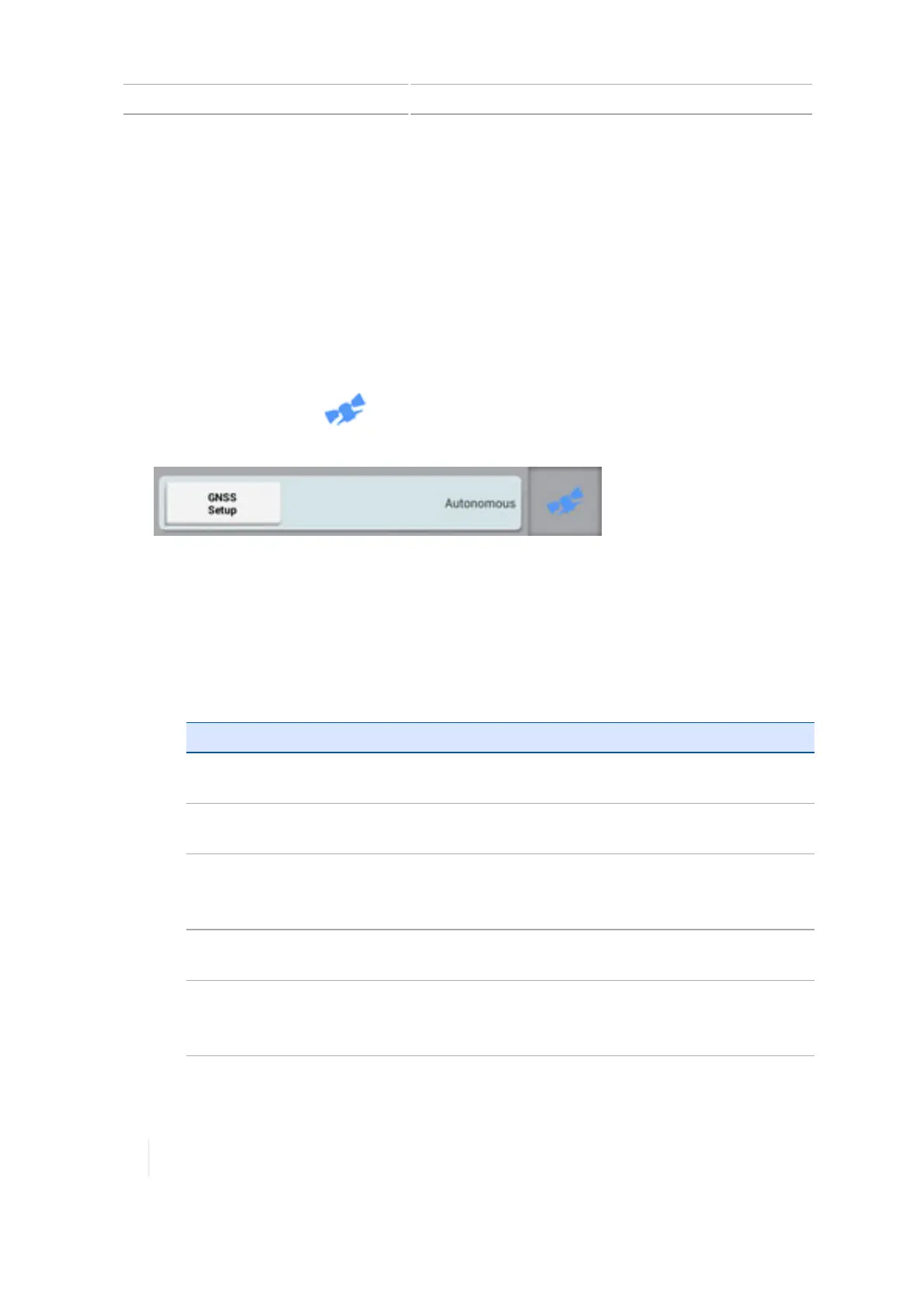

Tap GNSSSetup.
The GNSS setup panel displays.
5. At the SELECTIONsection:
a. Tap Antenna Type, then select the antenna you are using from the list. Choices are AG25,
Other, ZephyrTM II, ZephyrII(Ruggedized).
b.
Tap Correction Source and select the correction source you will be using.
Note – You will not be able to select any correction source that is locked.
Correction Source Description
Autonomous (None) No GPS corrections. If this is your correction source,
there are no additional settings for you to enter.
SBAS
Satellite-based augmentation systems (SBAS)with free
correction services
RangePoint RTX corrections
Satellite-based subscription service for corrections with
pass-to-pass accuracy < 6" (15 cm) and GLONASS
compatibility
OmniSTAR G2/HP/GR
corrections setup
Satellite-based subscription service
CenterPoint RTX setup
(Modem)
Cellular broadcast subscription service for corrections
with < 1.5" (3.8 cm) accuracy and GLONASS
compatibility.
