5 Connectivity GNSS receiver settings
Setting Options
Frequency
Choose the RTX frequency for your region or enter a custom
frequency. Frequency options are:
ll Asia/ Pacific (1539.8325) (Baud Rate= 600)
l Central North America (1557.8150) (Baud Rate= 2400)
l Custom (Enter the Frequency and Baud Rate)
l Eastern North America (1557.8590) (Baud Rate= 600)
l Europe/ Africa (1539.9525) (Baud Rate= 600)
l Latin America (1539.8325) (Baud Rate= 600)
l Western North America (1557.8615) (Baud Rate= 600)

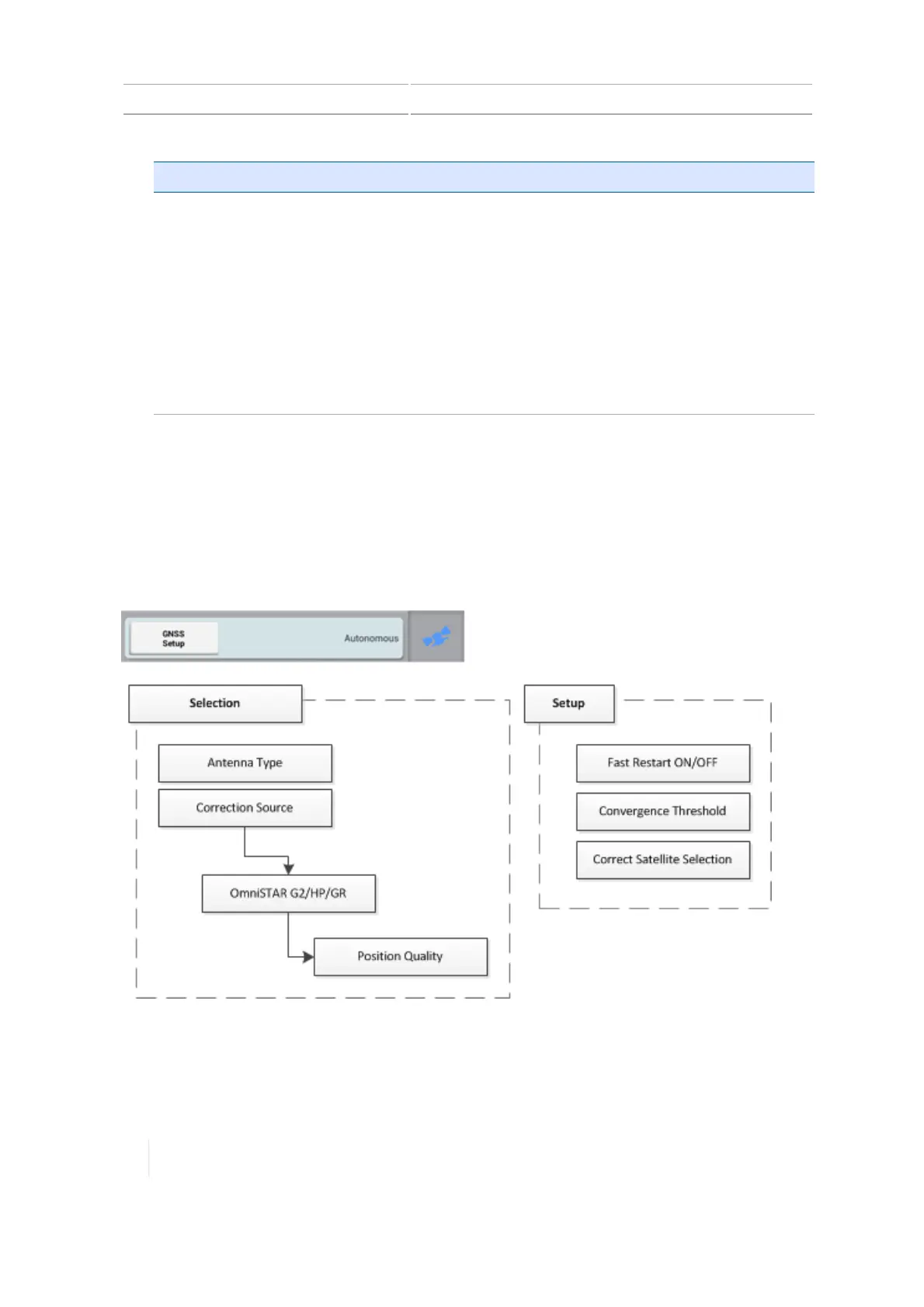

OmniSTAR G2/HP/GR corrections setup
Satellite-based subscription service:
l HP corrections have 2 - 4" (5 - 10 cm) accuracy
l G2 corrections have 3 - 4" (8 - 10 cm) accuracy and is compatible with GLONASS
The GNSSreceiver in the TM-200 Module receives these signals.
To set up this correction service:
120 TMX-2050 Display User Guide Version 1.075, Revision C
