Field-IQ system operations 10 Operations
Item Description Tap here to ...
4
Automatic/Manual section
switch
l Automatic mode: The display automatically opens
and closes sections when entering areas of overlap,
non-apply zones, or crossing boundaries.
l Manual mode: The sections are controlled manually,
bypassing the display.
Note – You can switch from Automatic to Manual mode
while traveling.
5
Master switch A: Jump start (top position)
The sections and rate are ready to be commanded by the
display, and the system is overridden to use a preset
control speed (the speed is set in the implement setup).
Use the jump start function if you lose a GNSS signal or
you want to start applying before your implement is up
to speed.
B: On (middle position)
The sections and rate are ready to be commanded by the
display.
C: Off (lower position)
Sections are closed and rate is set to zero.

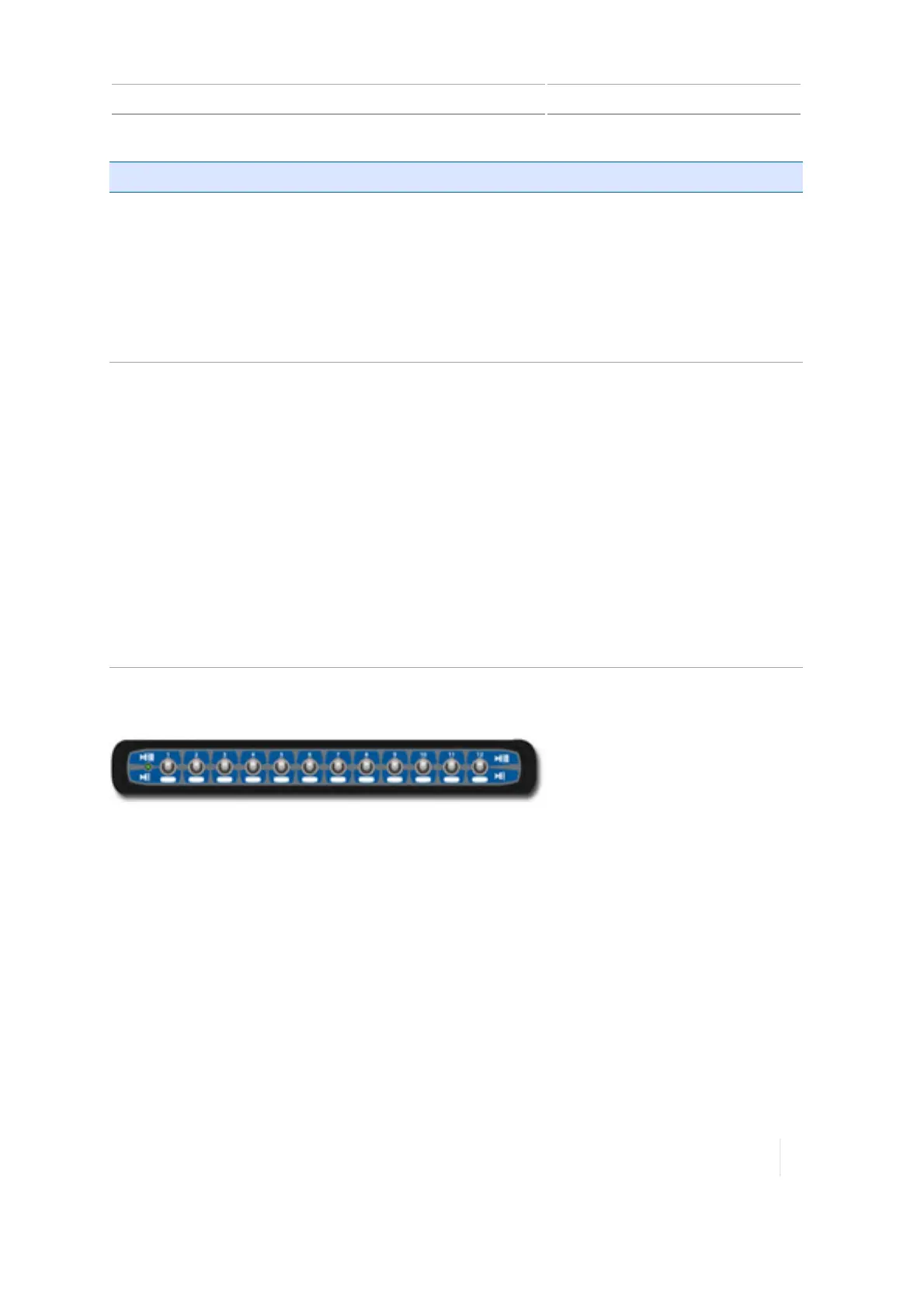

Field-IQ 12-section switch box
Only one section switch box can be used on each system. Each section switch is automatically
assigned to the corresponding module. The modules are read from left to right. For example, switch
1 assigns to the module furthest on the left when standing behind the implement.
Relation to master switch box
The section switches have different functions, depending upon the status of the master
Automatic/Manual section switch on the master switch box.
Automatic mode: When the Automatic/Manual section switch of the master switch box is in the
automatic mode:
l If the section switch is in the on/up position the section(s) assigned to it are commanded
automatically by the display.
Version 1.075, Revision C TMX-2050 Display User Guide 271
