6 Vehicles EZ-Pilot system setup

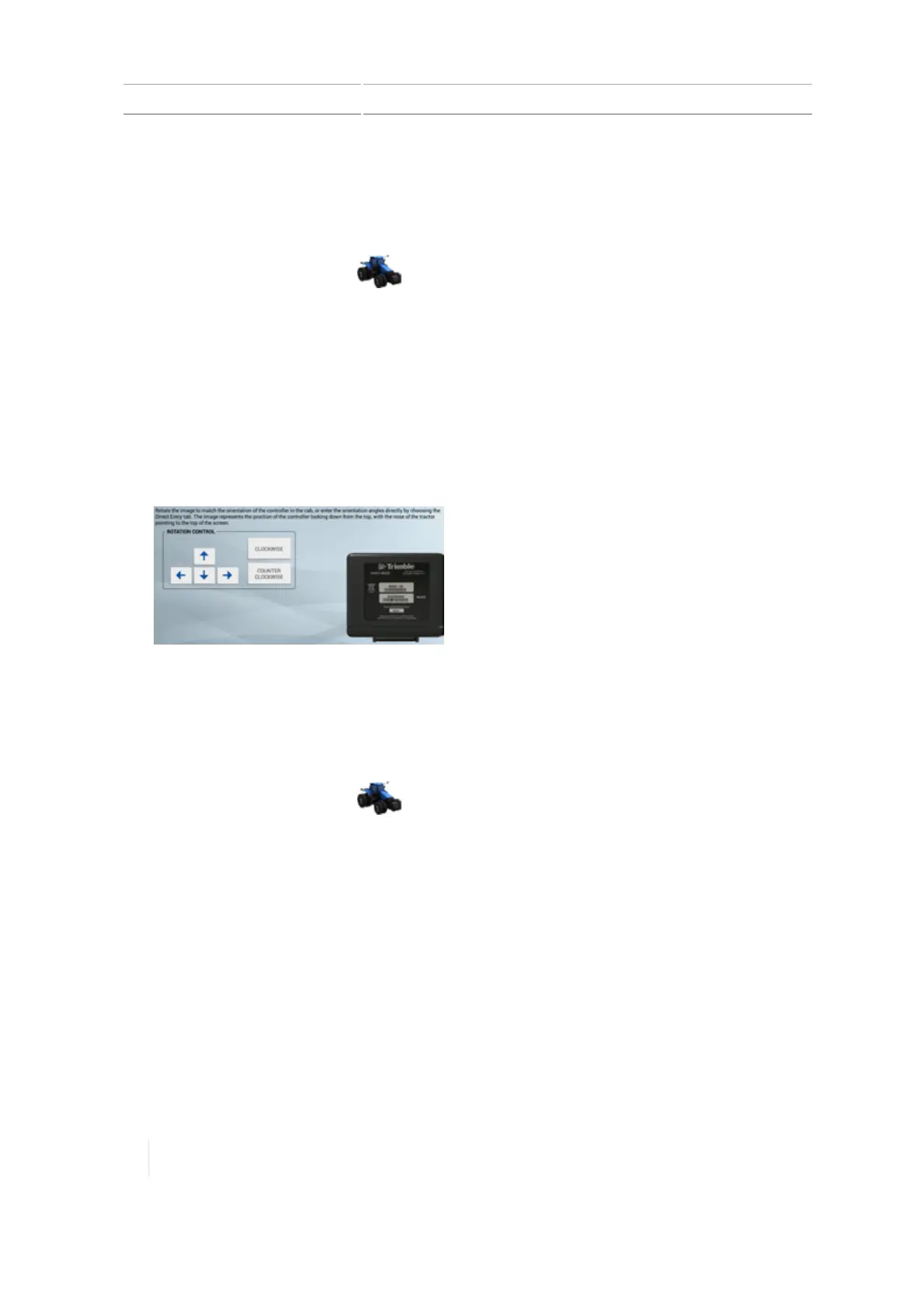

The CONTROLLERSETTINGS section of the vehicle setup panel shows an image of the controller as
though you are looking down on the vehicle from above, with the front of the vehicle at the top of
the screen.
1. Navigate to the GUIDANCE section of the vehicle setup panel:
a.
At the Home screen, tap . The Vehicle setup panel displays.
b. Tap Edit.
c. At the list on the left-hand side of the setup panel, tap the name of the vehicle you want to
edit. The display changes the list item to a blue background with white text.
d. Tap Edit, then GUIDANCE.
2.
Tap CONTROLLERSETTINGS.
3.
Rotate the on-screen IMD-600 to match the position of the actual IMD-600 in the vehicle as you
are looking down from the top, with the nose of the tractor point to the top of the screen. Tap
the arrow buttons to move the on-screen IMD-600 clockwise or counterclockwise.
Steering speed settings for EZ-Pilot system
Note – Adjust settings only if necessary to improve steering performance.
1. Navigate to the GUIDANCE section of the vehicle setup panel:
a.
At the Home screen, tap . The Vehicle setup panel displays.
b. At the list on the left-hand side of the setup panel, tap the name of the vehicle you want to
edit. The display changes the list item to a blue background with white text.
c. Tap Edit, then GUIDANCE.
2.
Tap SETTINGS. Complete the information at the SETTINGS section.
