Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-55
Theory of Operation

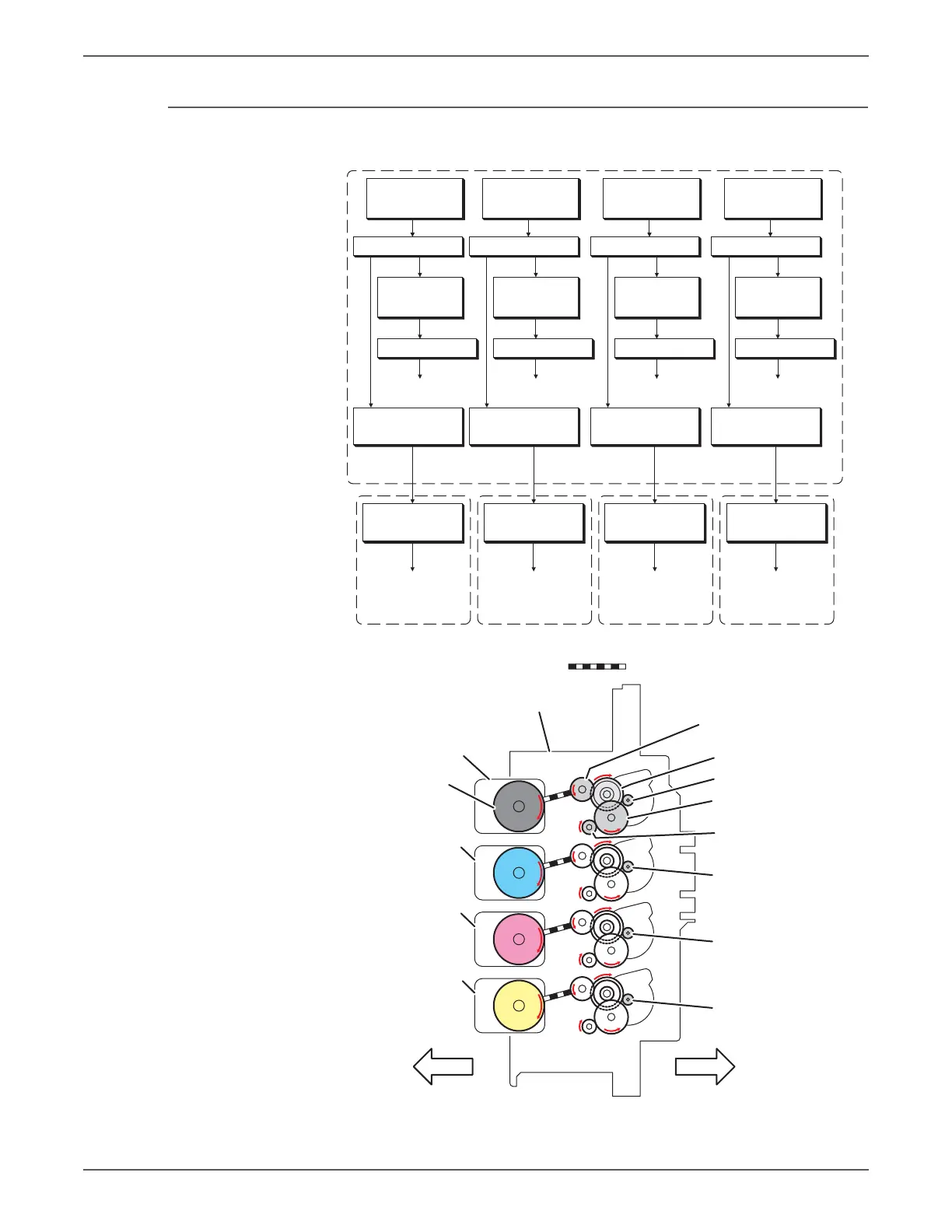

Dispense Assembly
Rotation of the toner motors drives the agitator and auger in the Toner Cartridge.
s6500-068
Dispenser
Toner
Cartridge (K)
Idler Gear (K)
Dispenser
Motor (K)
Agitator
Gear (K)
[ Auger (K) ]
Auger Idler
Gear (K)
Auger Idler
Gear (K)
[ Agitator (K) ]
Agitator
Gear (C)
Agitator
Gear (M)
Agitator
Gear (Y)
Toner
Cartridge (C)
[ Agitator (C) ]
Toner
Cartridge (M)
[ Agitator (M) ]
Toner
Cartridge (Y)
[ Agitator (Y) ]
Auger Gear (K)
Idler Gear (C)
Dispenser
Motor (C)
[ Auger (C) ]
Auger Idler
Gear (C)
Auger Idler
Gear (C)
Auger Gear (C)
Idler Gear (M)
Dispenser
Motor (M)
[ Auger (M) ]
Auger Idler
Gear (M)
Auger Idler
Gear (M)
Auger Gear (M)
Idler Gear (Y)
Dispenser
Motor (Y)
[ Auger (Y) ]
Auger Idler
Gear (Y)
Auger Idler
Gear (Y)
Auger Gear (Y)
s6500-069
Right
Left
Dispenser
Toner Cartridge (K)
Idler Gear (K)
Dispenser Motor (K)
Agitator Gear (K)
[ Agitator (K) ]
Agitator Idler Gear (K)
Auger Idler Gear (K)
Auger Gear (K)
[ Auger (K) ]
Toner Cartridge (C)
Toner Cartridge (M)
Toner Cartridge (Y)
Dispenser Motor (C)
Dispenser Motor (M)
Dispenser Motor (Y)
: Indicates The Engagement Of Gears
