Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-163
Service Parts Disassembly
Duplex Harness
PL11.1.14 (Harness Assy Dup)
1. Open the Front Cover.
2. Remove the Duplex Unit (page 8-162).

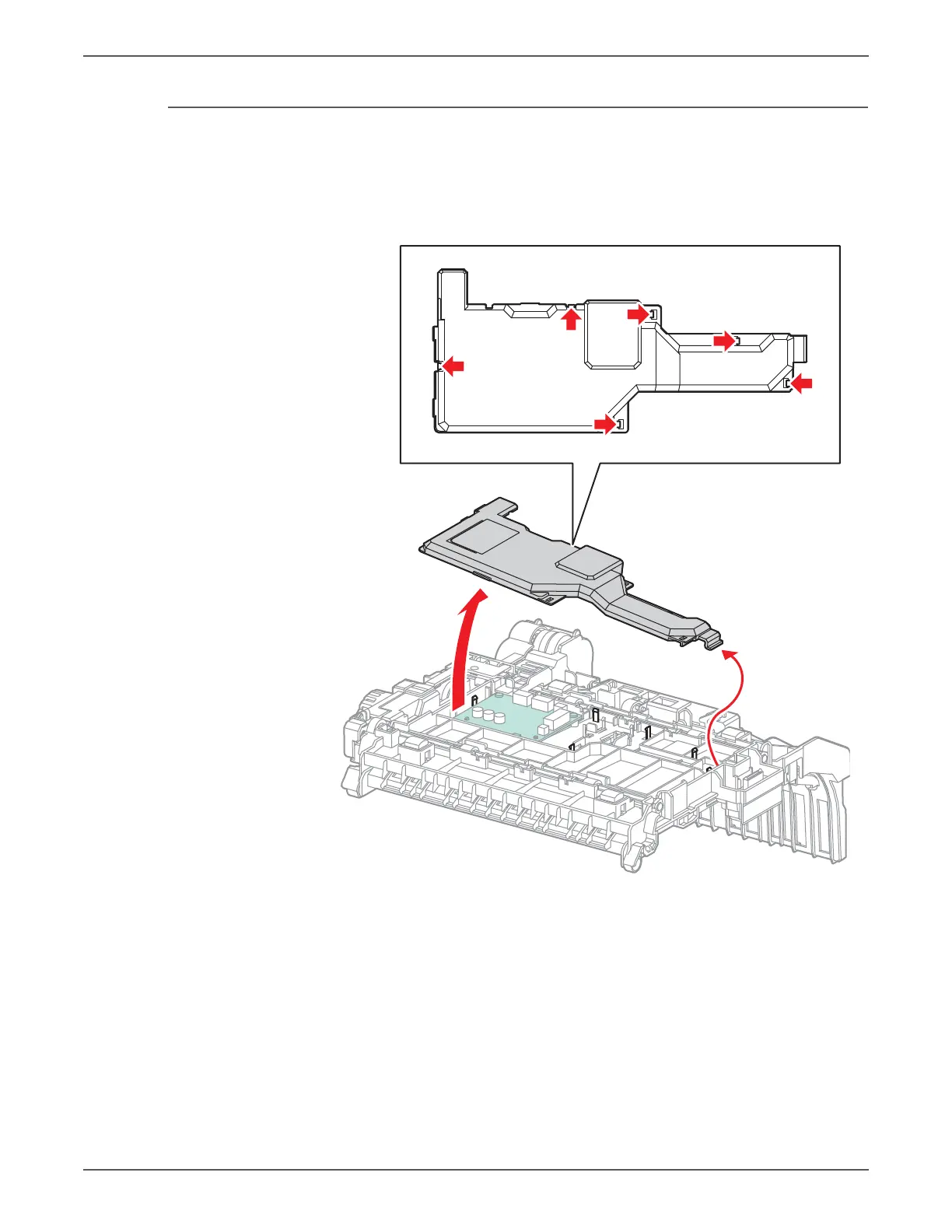

3. Release the six hooks that secure the Duplex Board Cover.
4. Disconnect P/J601 from the Duplex Board and remove the Duplex Harness
from the guides.
s6500-347
To Next Page
