Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-151
Service Parts Disassembly
MFP Control Panel
MFP PL1.2.3 (Console Assy Panel)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove the Duplex Unit if installed.

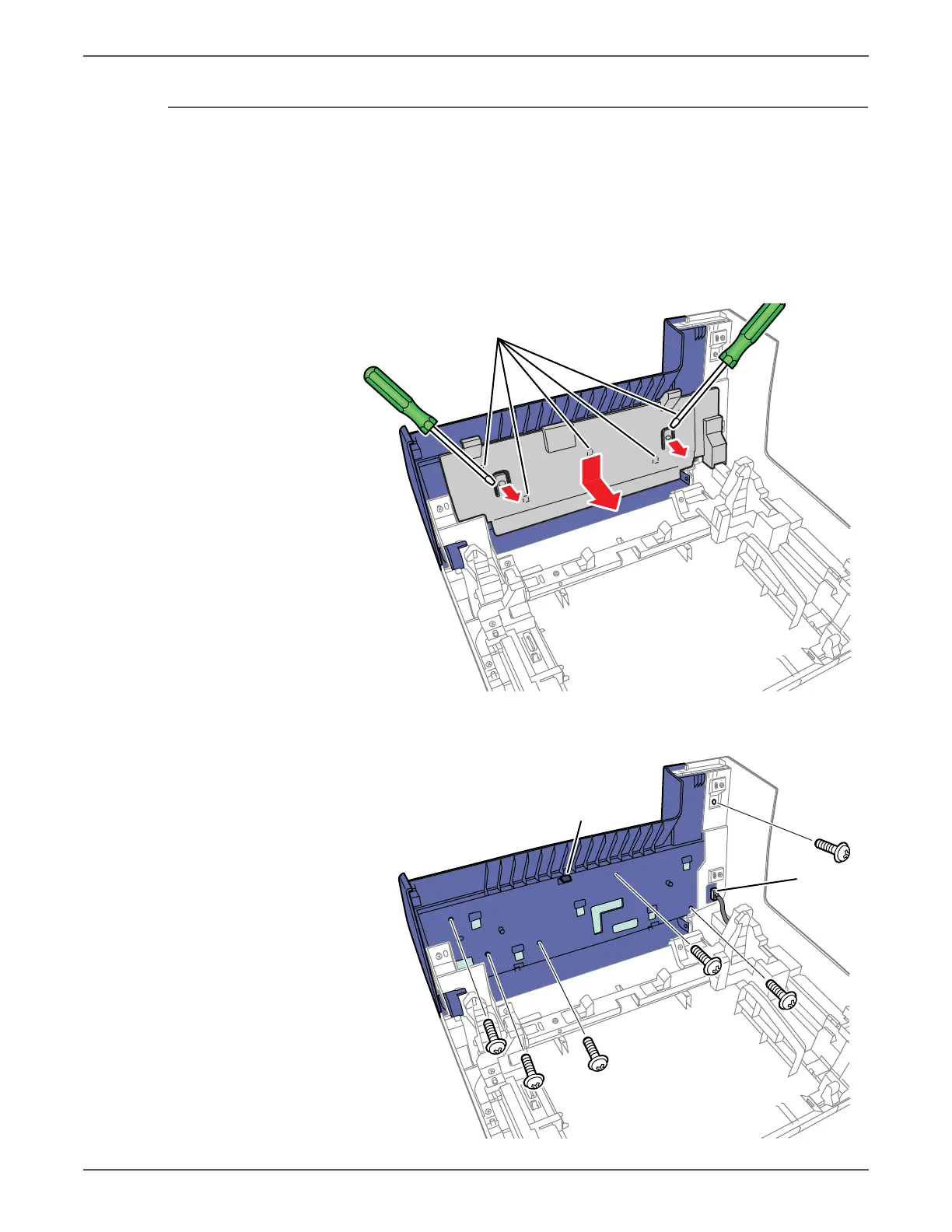

4. Release the two bosses on the Inner Front Cover using a small screwdriver.
5. Allow the Inner Front Cover to drop to release the five hooks, then remove the
cover.
6. Disconnect P/J202, and remove the six screws (silver, tap, 8mm), that secure
the Control Panel to the Front Cover.
s6500-475
s6500-474
Hooks
s6500-475
Hook
P/J202

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
