Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-39
Service Parts Disassembly

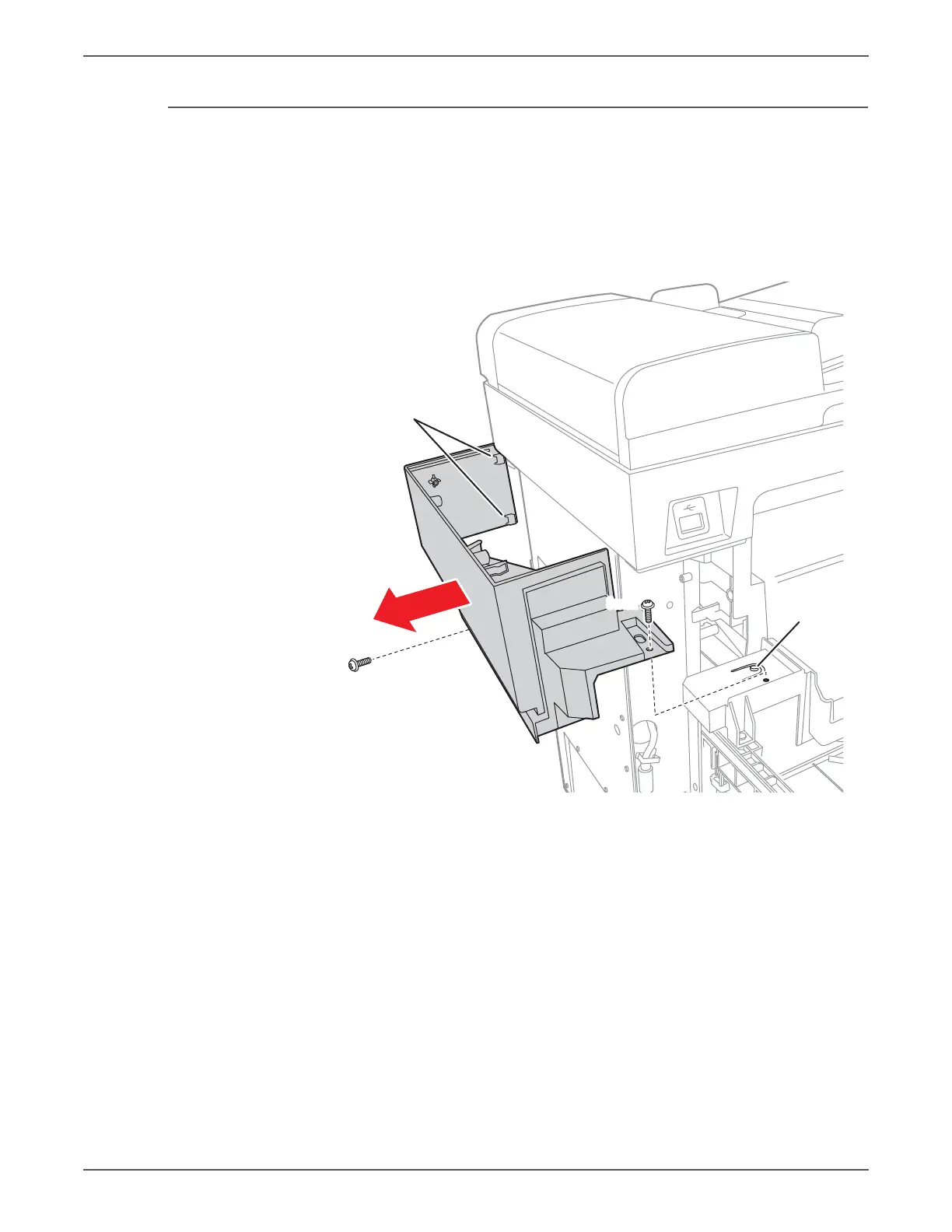

Outer Pole Cover
MFP PL 1.1.1 (Cover Pole Outer)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).
4. Remove the two screws (silver, 6mm, and silver, tap, 8mm) that secure the
Outer Pole Cover.
5. Use a screwdriver to push the boss of the Top Cover (PL10.1.4) and release the
front of the Outer Pole Cover.
6. Release the 2 hooks that secure the Outer Pole Cover at the back to remove
the cover.
Replacement Note
Engage the 2 hooks on the back side of the Outer Pole Cover first.
s6500-217
Boss
Hooks
6mm
8mm8mm

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
