Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-31
Service Parts Disassembly
Upper Link Pivot Shaft Kit
PL1.2.96 (Kit Shaft Link Front [Upper])
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Duplex Unit (page 8-162).
4. Remove the Right front holder (page 8-25)
5. Remove the Left front holder (page 8-28).
Note
Left upper link pivot replacement is possible without disconnecting the
Duplex Harness (P/J272) from the Left front holder.

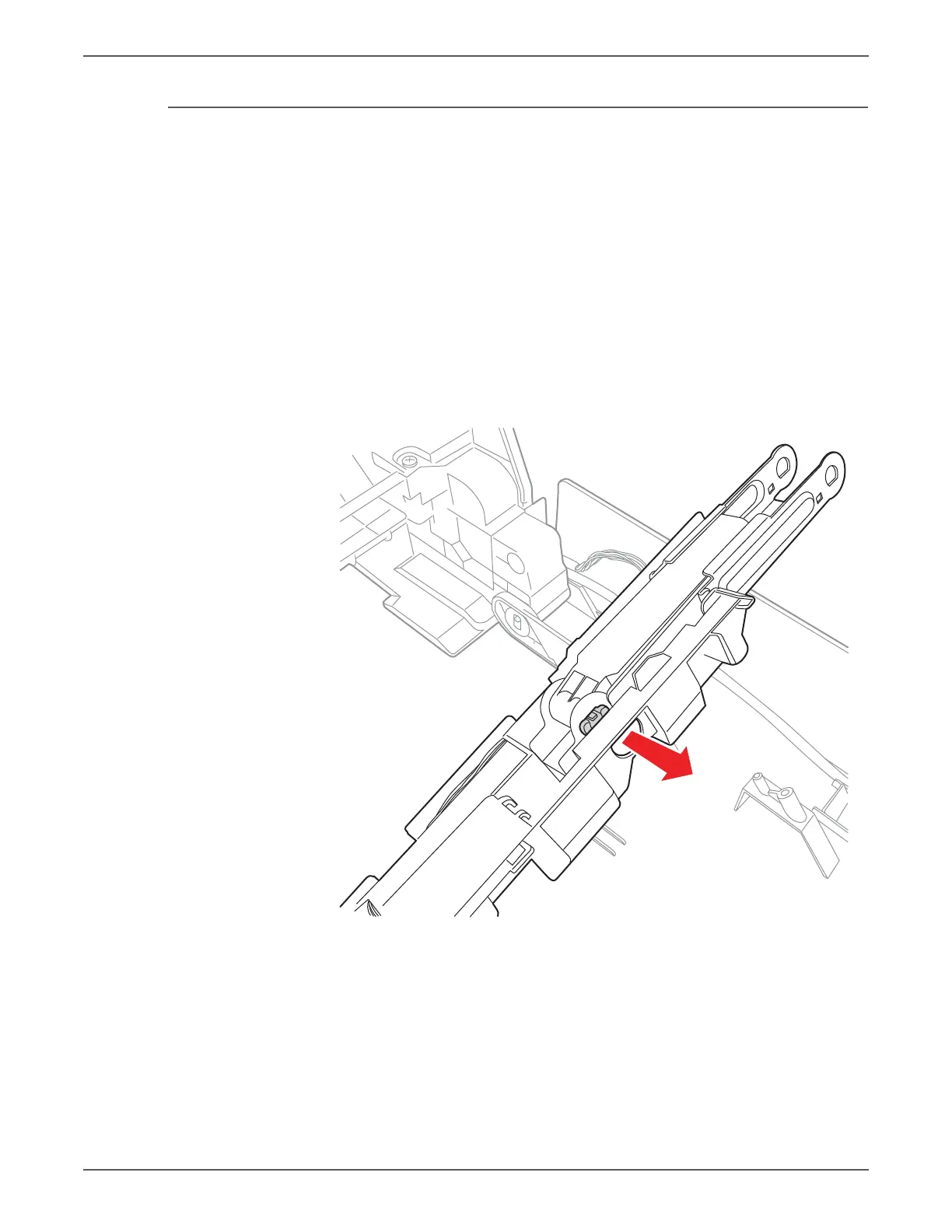

6. Release the hook that secures each pivot shaft in the link and remove the pivot
shaft.
s6500-206
