Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-109
Service Parts Disassembly
Transfer Belt Pivot Kit
PL 6.1.99 (Kit Pivot)
This procedure removes the left and right Transfer Belt pivot shafts.
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Right Side Cover (SFP, page 8-17; MFP, page 8-40).
4. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).

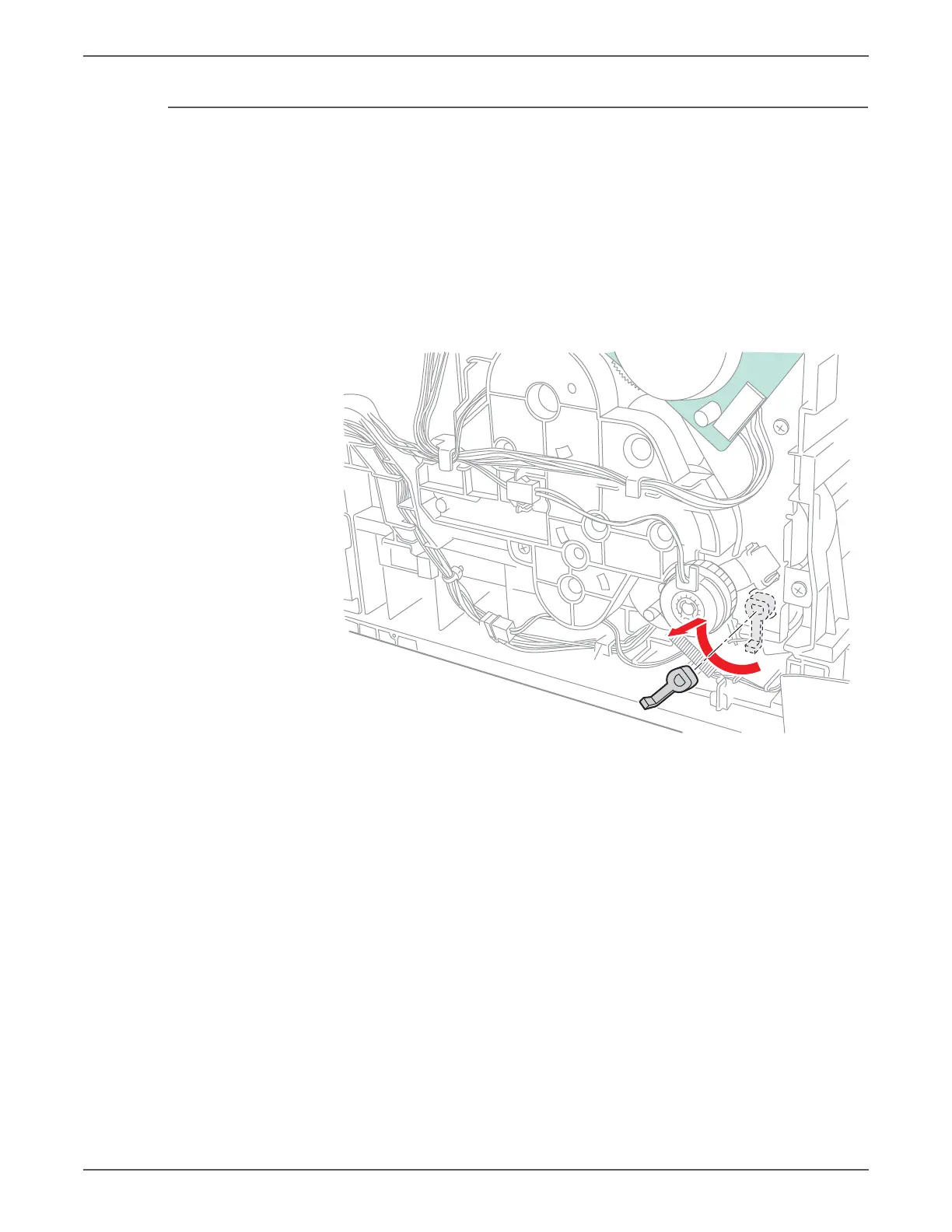

5. Rotate the Pivot Stopper so that its tabs align with the notches of the Main
Drive Assembly.
6. Remove the Pivot Stopper.
Note
When performing the next step, be ready to catch Gear T4 when you
remove the pivot shaft.
7. Pull out the Left Transfer Pivot shaft, and remove the Gear T4.
s6500-291

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
