8-112 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Transfer Belt
PL 6.1.7 (Transfer Belt)
Caution
Do not scratch the Transfer Belt surface.
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Right Side Cover (SFP page 8-17; MFP page 8-40).
4. Remove the Left Side Cover (SFP page 8-18; MFP page 8-37).

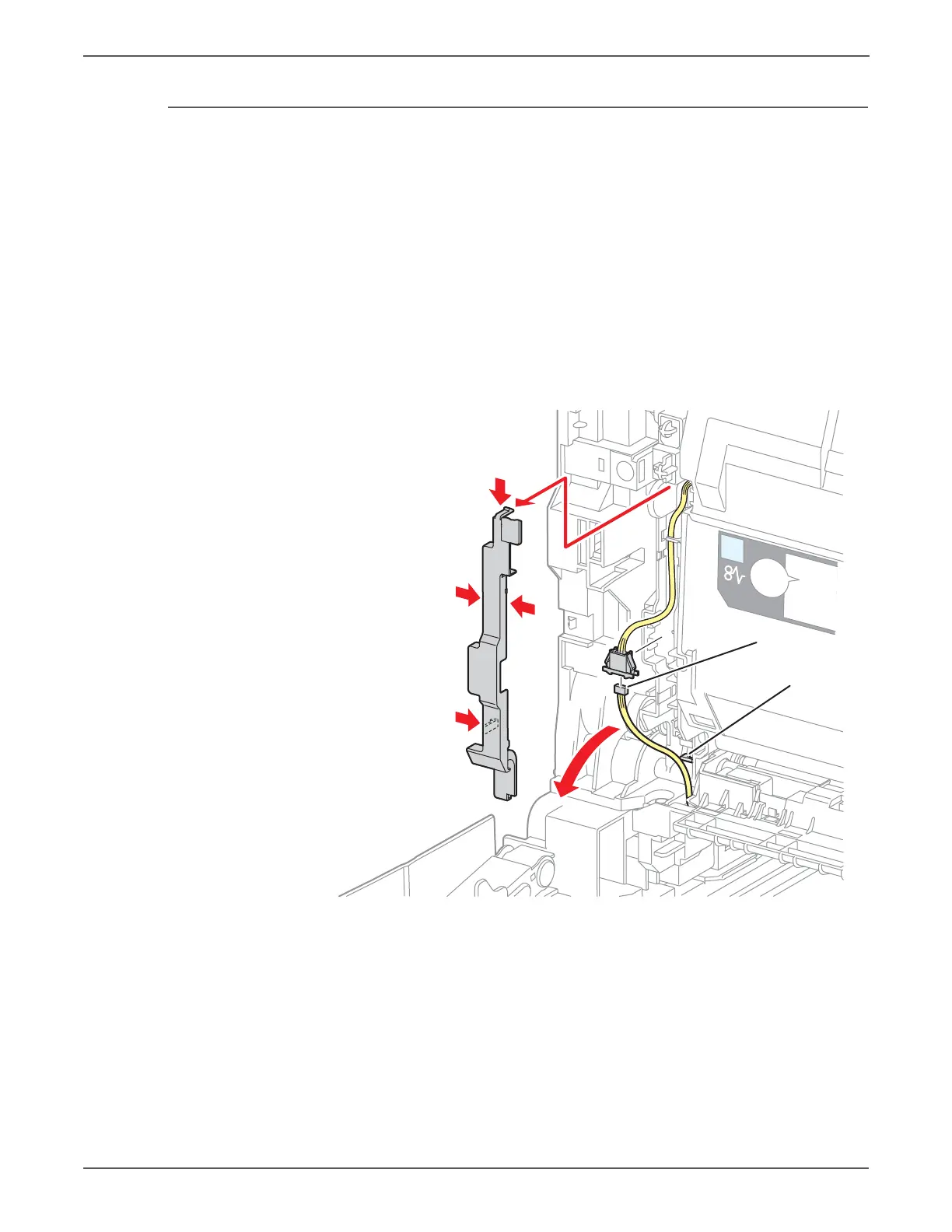

5. Use a miniature screwdriver to release the four harness cover hooks, then
remove the cover.
6. Release the harness from the Transfer Belt, then unplug the Transfer Belt
connector (P/J281).
Note
Leave the relay connector on the Transfer Belt harness side.
7. Release the printer side of the harness from the hook on the Transfer Belt.
8. Remove the Transfer Belt Pivot Kit (page 8-109).
9. Remove the Transfer Belt assembly from the printer.
Replacement Note
Reset the Transfer Belt life counter after installing a new Transfer Belt.
s6500-294
P/J281
Hook
E
