Service Parts Disassembly
Option Registration Roller Bearing
PL12.3.16
1. Remove the Optional Feeder (page 8-167).
2. Remove the front cover (page 8-168).
3. Remove the left side cover (page 8-169).
4. Remove the Drive Clutch (page 8-174).
5. Remove the Feed Gear Kit (page 8-178).

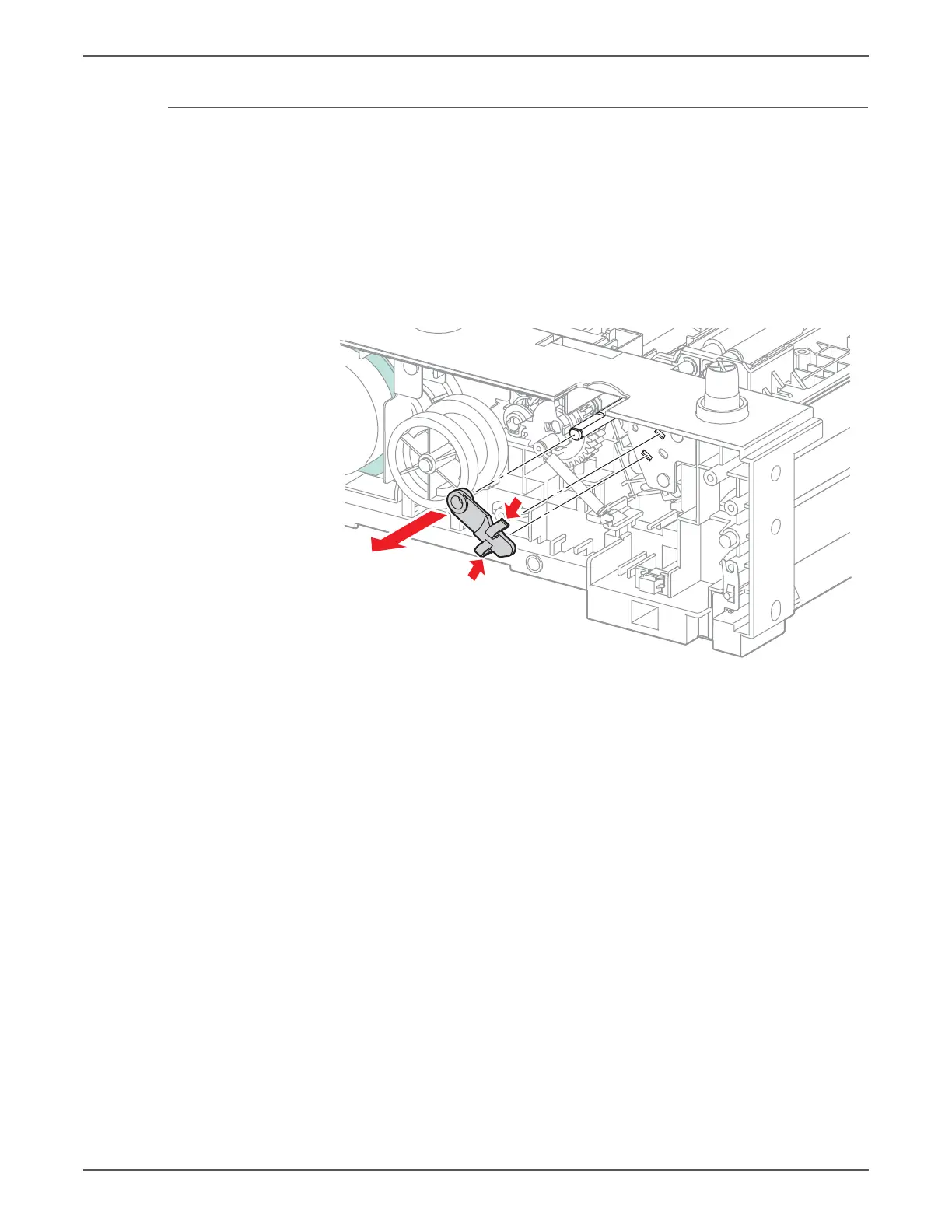

6. Release 2 hooks that secure the bearing and remove the bearing from the
registration roller shaft.
s6500-364
