Xerox Phaser 6500 Service Manual

8-126 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

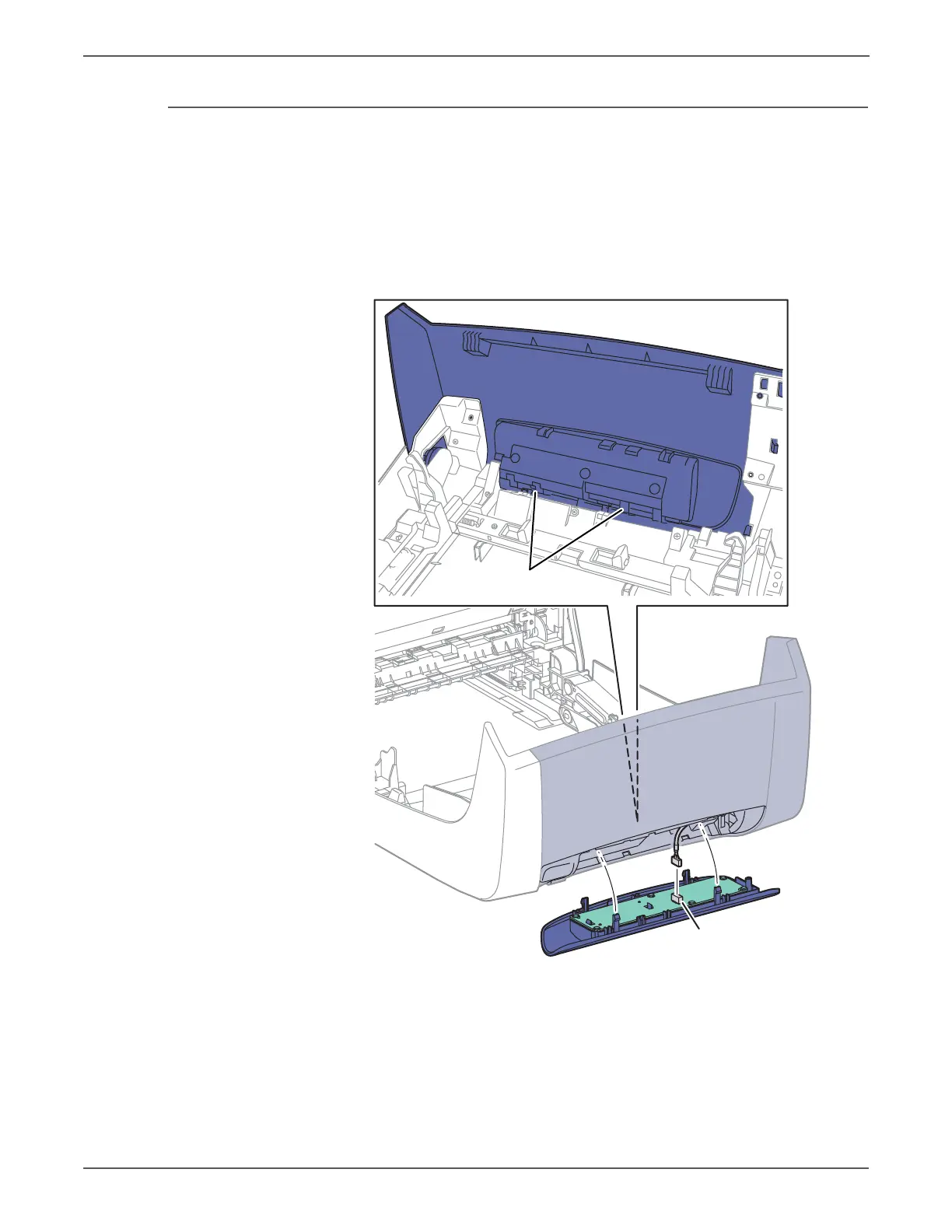

SFP Control Panel
SFP PL1.2.3 (Console Assy Panel)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove Duplex Unit if installed (page 8-162).
4. Release two hooks that secure the Control Panel to the Front Cover.
5. Disconnect P/J202 to release the Control Panel from the Front Cover.
Replacement Note
Make sure the wire harness is seated in the slot through the stiffener rib in the
Front Cover. If the harness is not properly seated in the slot, it could be
pinched by the Control Panel.
s6500-311
P/J202
Hooks
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
