Xerox Phaser 6500 Service Manual

8-16 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Output Tray Extension
SFP PL1.1.2 (Tray Ext)
1. Perform the service preparation steps on page 8-3.
2. Remove the Top Cover (page 8-15).

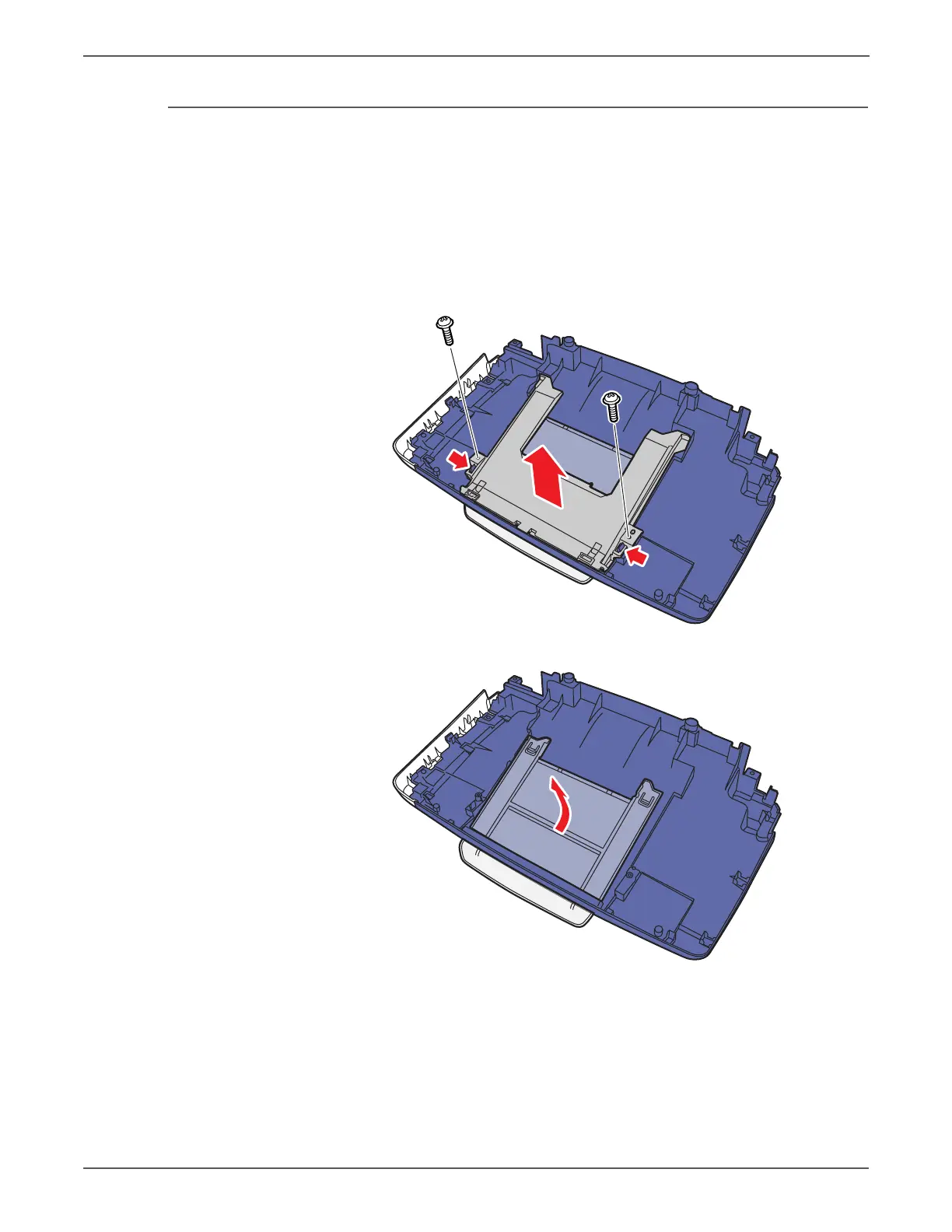

3. Remove the two screws that attach the Guide Tray to the Top Cover.
4. Release the two latches and lift the Guide Tray away from the Top Cover.
5. Slide the Tray Extension out of the slot in the Top Cover.
s6500-185
