Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-43
Service Parts Disassembly
MFP Rear Cover
MFP PL1.1.5 (Cover Rear)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Right Side Cover (page 8-40)

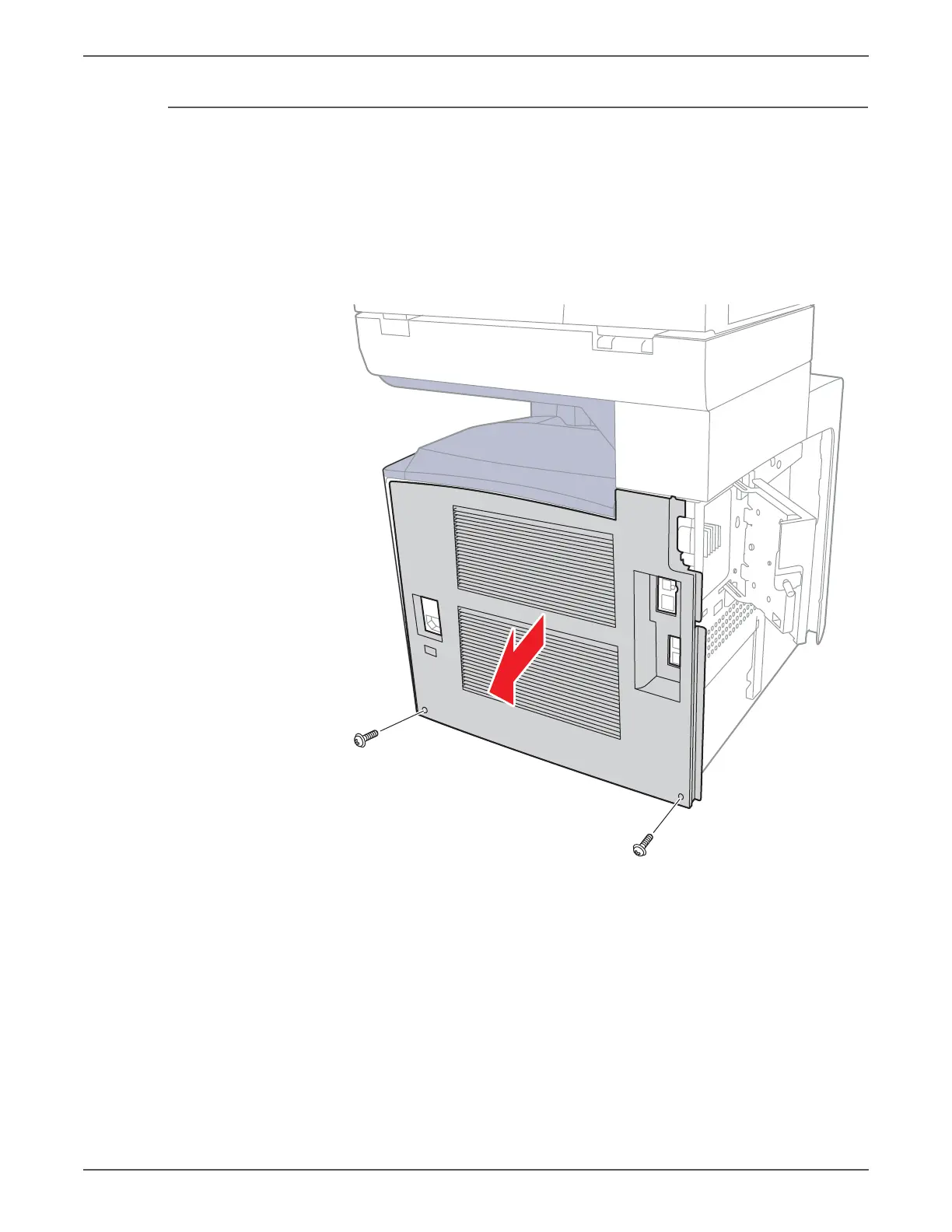

5. Remove the two screws (silver, tap, 8mm) that secure the Rear Cover, and
remove the cover from the MFP.
s6500-219
To Next Page
