Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-47

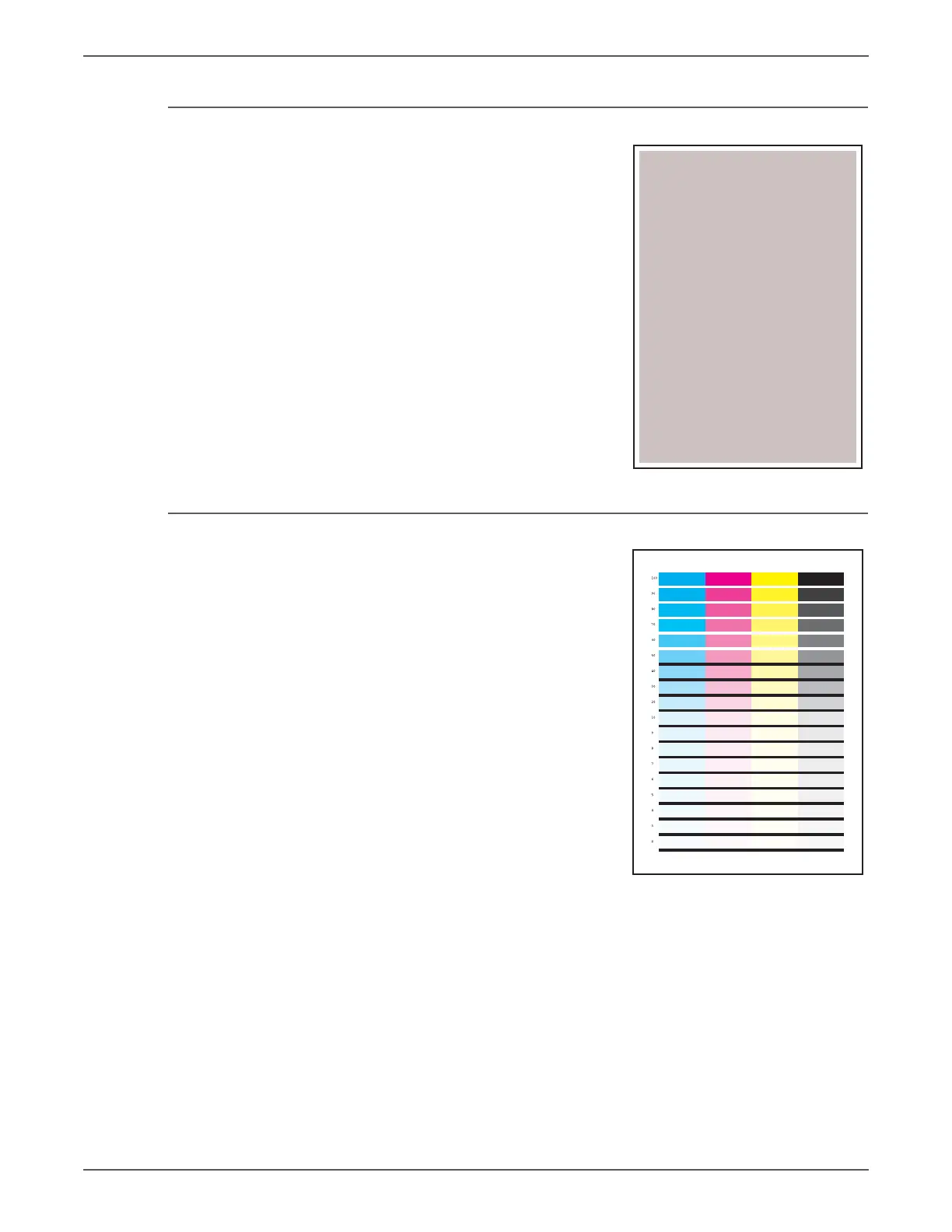

Print-Quality Troubleshooting
CMY 20% ESS Test Print
This test print provides 20% density for
combination of Cyan, Magenta, and Yellow
on the whole page. This test is used to
identify problems with balance of three
color toners or another toner. Compare the
print with this example to determine the
problem.
• Fail: Check the Cyan, Magenta, or
Yellow Toner Cartridge.
• Pass: Check the Black Toner Cartridge.
Gradation ESS Test Print
This test print provides 2 - 100% density for
Cyan, Magenta, Yellow, or Black on the
whole page. This test is used to identify
problems with the printer function or the
Image Processor Board. Compare the print
with this example to determine the
problem.
• Fail: Check the printer function.
• Pass: Check the Image Processor Board.
s6500-147
s6500-148
