Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-173
Service Parts Disassembly

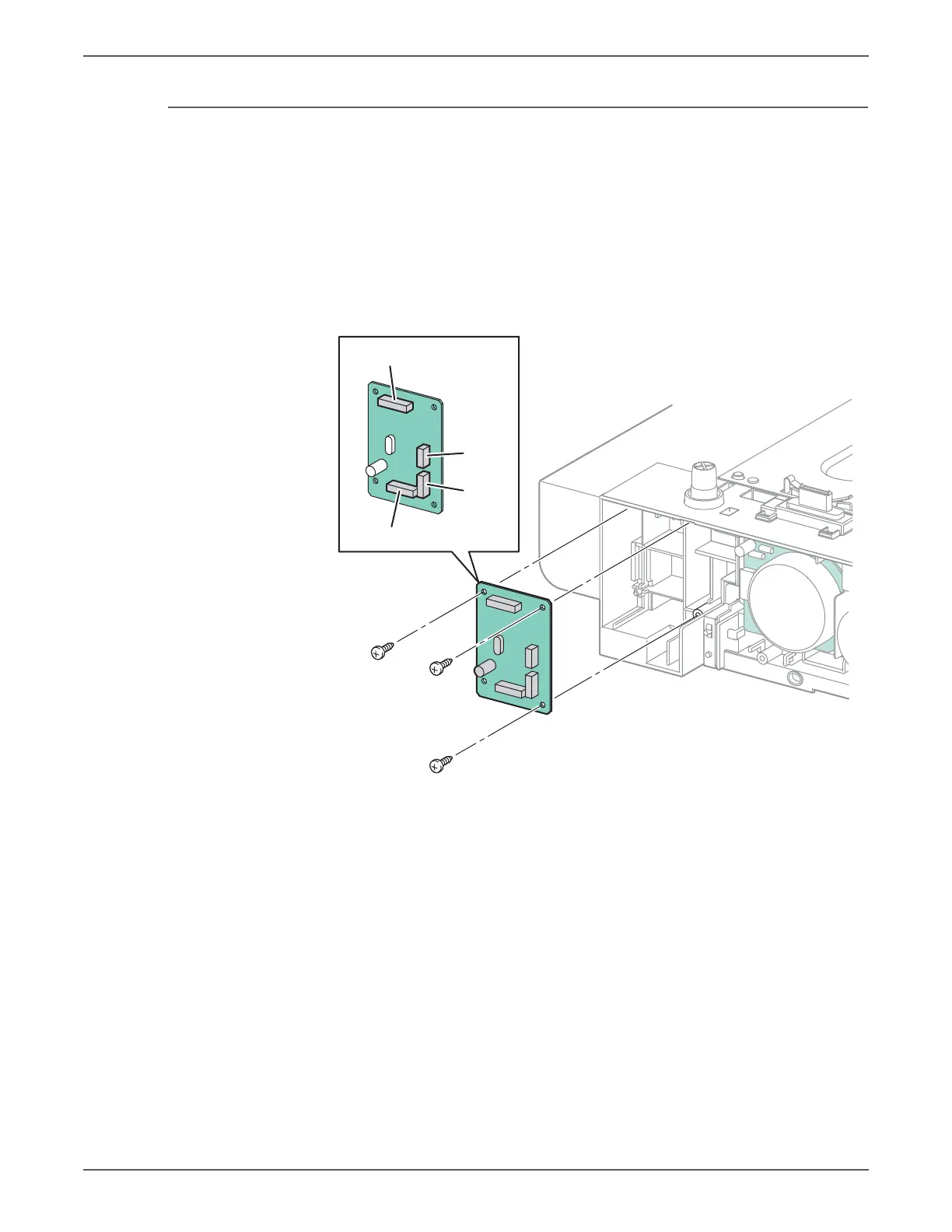

Optional Feeder Board
PL12.2.1
1. Remove the Optional Feeder (page 8-167).
2. Remove the Front Cover (page 8-168).
3. Remove the Rear Tray Cover.
4. Remove the Left Side Cover (page 8-169).
5. Disconnect all connections to the Feeder Board.
6. Remove three screws (silver, plastic, 8mm) that secure the Feeder Board to the
feeder.
s6500-356
P/J420
P/J421
P/J419
P/J422
