Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-143
Service Parts Disassembly
MFP Fax Board
MFP PL8.1.5 (PWBA Fax)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Rear Cover (page 8-20).
6. Remove the IP Board Shield (page 8-142).

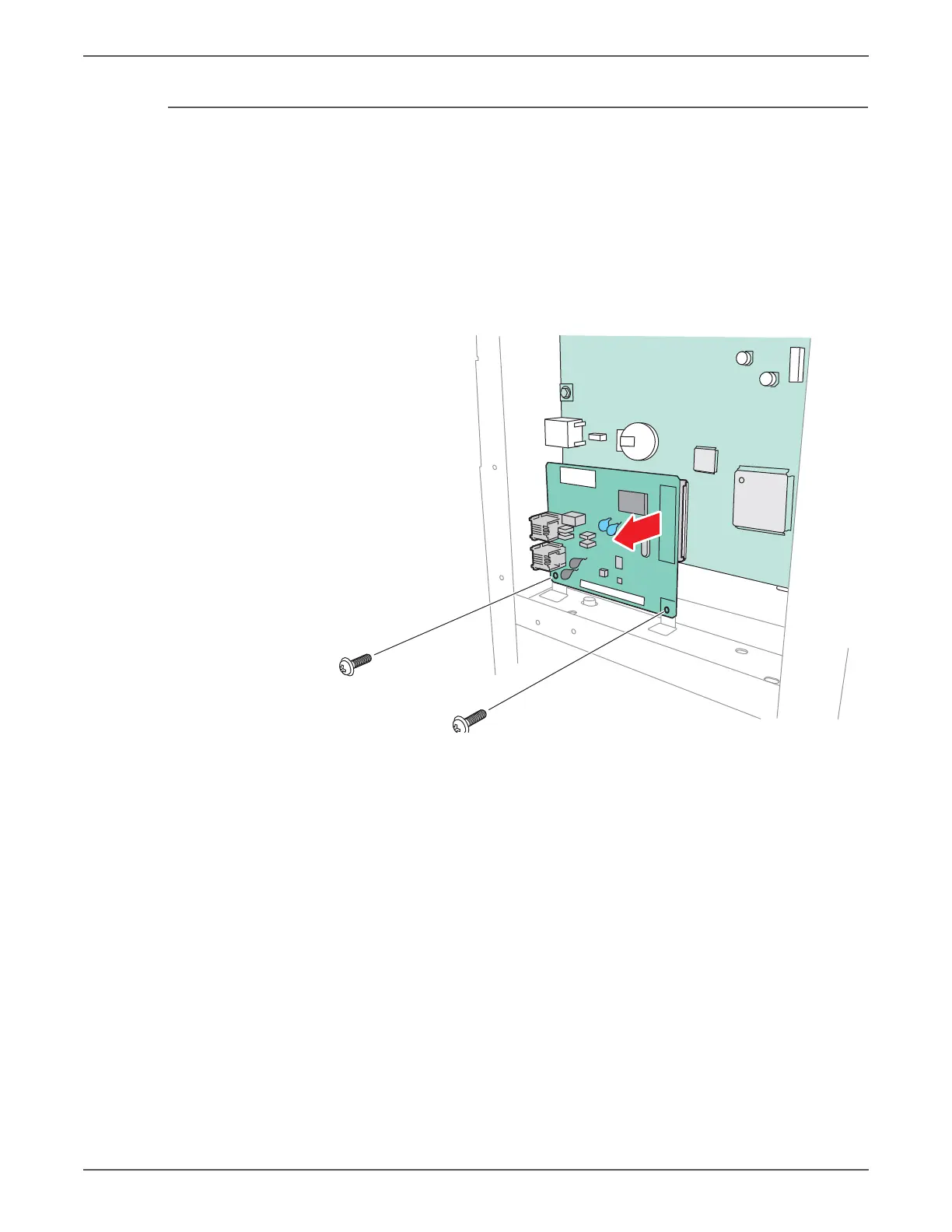

7. Remove two screws (silver, 6mm) that secure the board to the chassis.
8. Release the board from the connector on the Image Processor Board.
s6500-331

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
