Xerox Phaser 6500 Service Manual

8-160 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

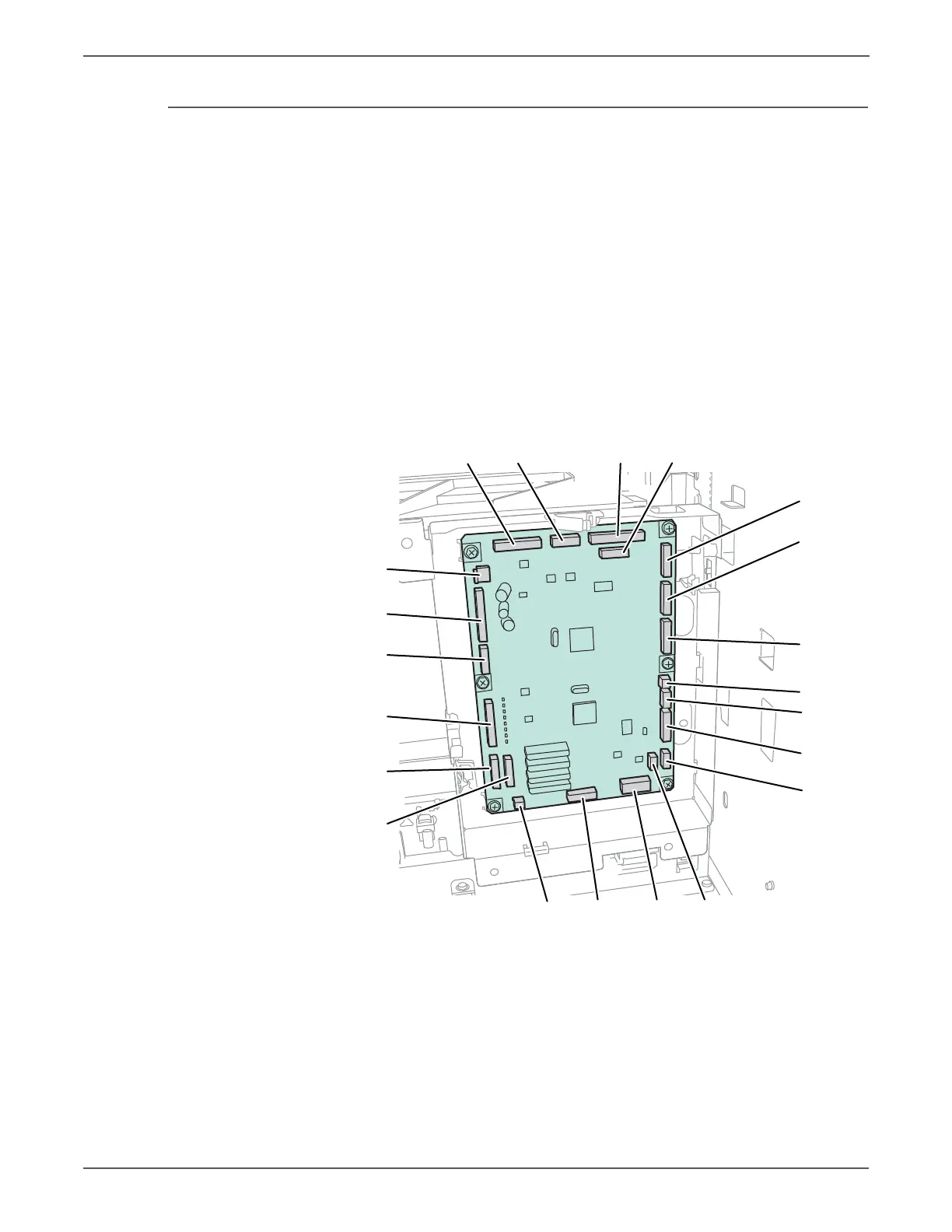

MFP MCU Board
MFP PL 8.3.6 (PWBA MCU)
1. Use the Service Diagnostics routine “Save NVM to ESS” on page 4-15 to
transfer the contents of the MCU NVRAM to the IP Board.
2. Exit Service Diagnostics and turn Off the printer.
3. Disconnect the Power Cord from the wall outlet.
4. Open the Front Cover.
5. Remove the Left Side Cover (page 8-37).
6. Remove the Outer Pole Cover (page 8-39).
7. Remove the MFP Right Side Cover (page 8-40).
8. Remove the Rear Cover (page 8-43).
9. Remove the Top Cover (page 8-45).
10. Remove the LVPS Card Cage (page 8-64).
11. Unplug all connectors from the MCU Board.
12. Remove the 6 screws (silver, with flange, 6mm) that secure the MCU Board to
the chassis and remove the board.
s6500-344
P/J11P/J10P/J41P/J40
P/J28
P/J23
P/J26
P/J24
P/J21
P/J22
P/J42
P/J15
P/J14
P/J17
P/J31
P/J18
P/J19
P/J16 P/J20P/J29 P/J27
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
