8-18 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Left Side Cover
PL 1.1.19 (Cover Side L)

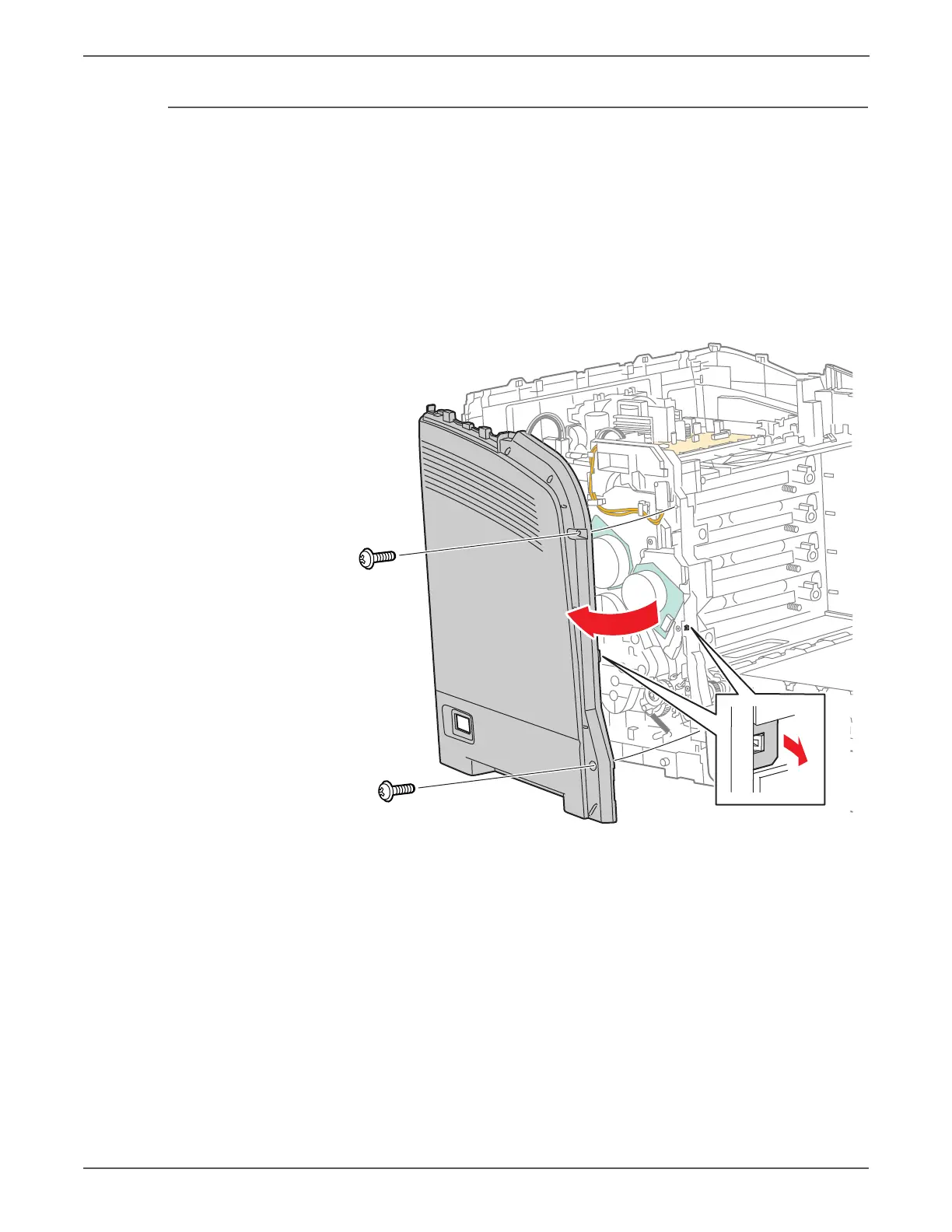

1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the two screws (silver, tap, 8mm).
5. Release the hook at the front of the Left Side Cover.
6. Swing the front edge out to release three hooks on the Rear Cover, and remove
the Left Side Cover from the chassis.
s6500-190
