Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-167
Service Parts Disassembly
Optional Feeder
Note
Remove the protective cap from the Optional Feeder connector before
installation.
Note
To service Optional Feeder components, remove the feeder.
Note
Although the illustrations for this procedure show the SFP, the details for
removing the Optional Feeder are the same for the MFP.

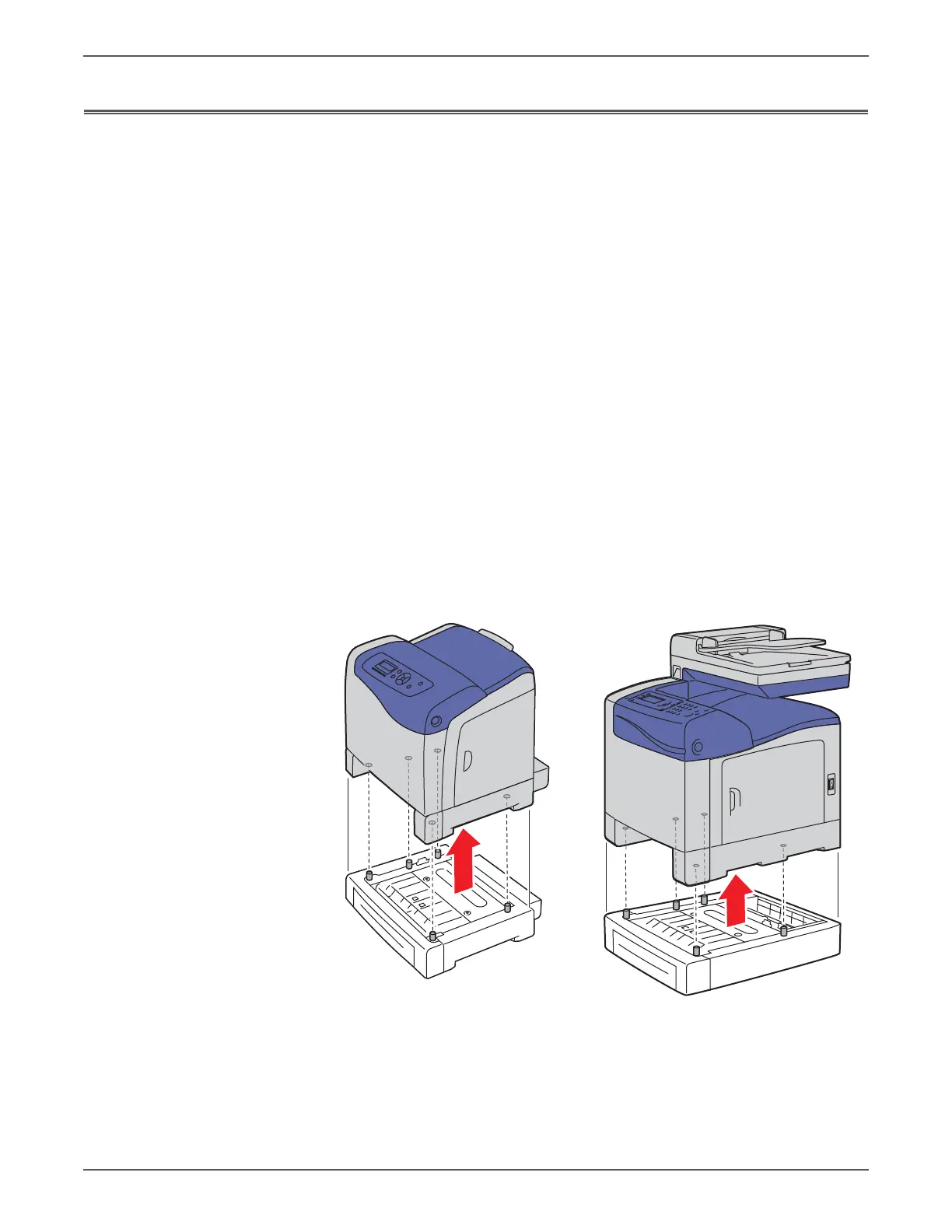

PL12.1.1
1. Turn off power and disconnect the power cord from the wall outlet.
2. Remove Tray 1.
3. Remove two thumbscrews that secure the Optional Feeder to the printer.
Warning
Use two persons when lifting the printer to avoid possible injury.
4. Lift the printer off the Optional Feeder.
s6500-350
