Xerox Phaser 6500 Service Manual

5-40 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

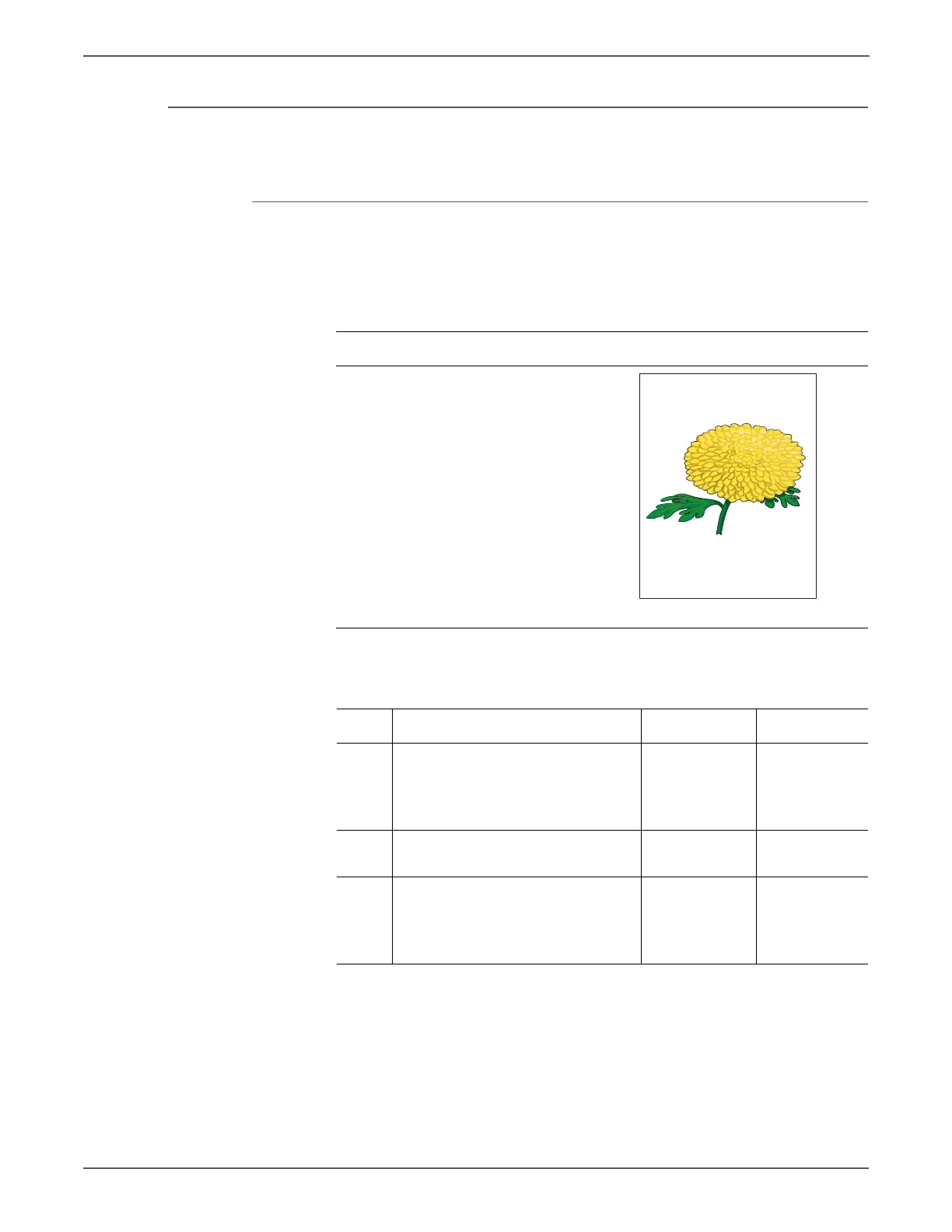

Print-Quality Troubleshooting
Incorrect Magnification
Incorrect magnification when copying with the ADF feeding.
Initial Actions
• Check the paper transfer path.
• Ensure there are no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 1. Check the paper condition.
2. Is the paper dry, recommended,
loaded in the correct position, and
meet the ADF specifications?
Go to step 2. Replace the
paper or use
the platen
mode.
2 Is the ADF closed against the
document glass completely?
Go to step 3. Close the ADF.
3 1. Perform Scanner Calibration
procedure (“Scanner Parameter
Setting” on page 6-11).
2. Does the error still occur?
Replace the IIT
Sub-Assembly
(page 8-195).
Complete.
Magnification Incorrect
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
