Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-145
Service Parts Disassembly
MFP LVPS
MFP PL8.2.12 (PWBA LVPS [110V & 220V])
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Rear Cover (page 8-43).
5. Disconnect all connections from the LVPS.

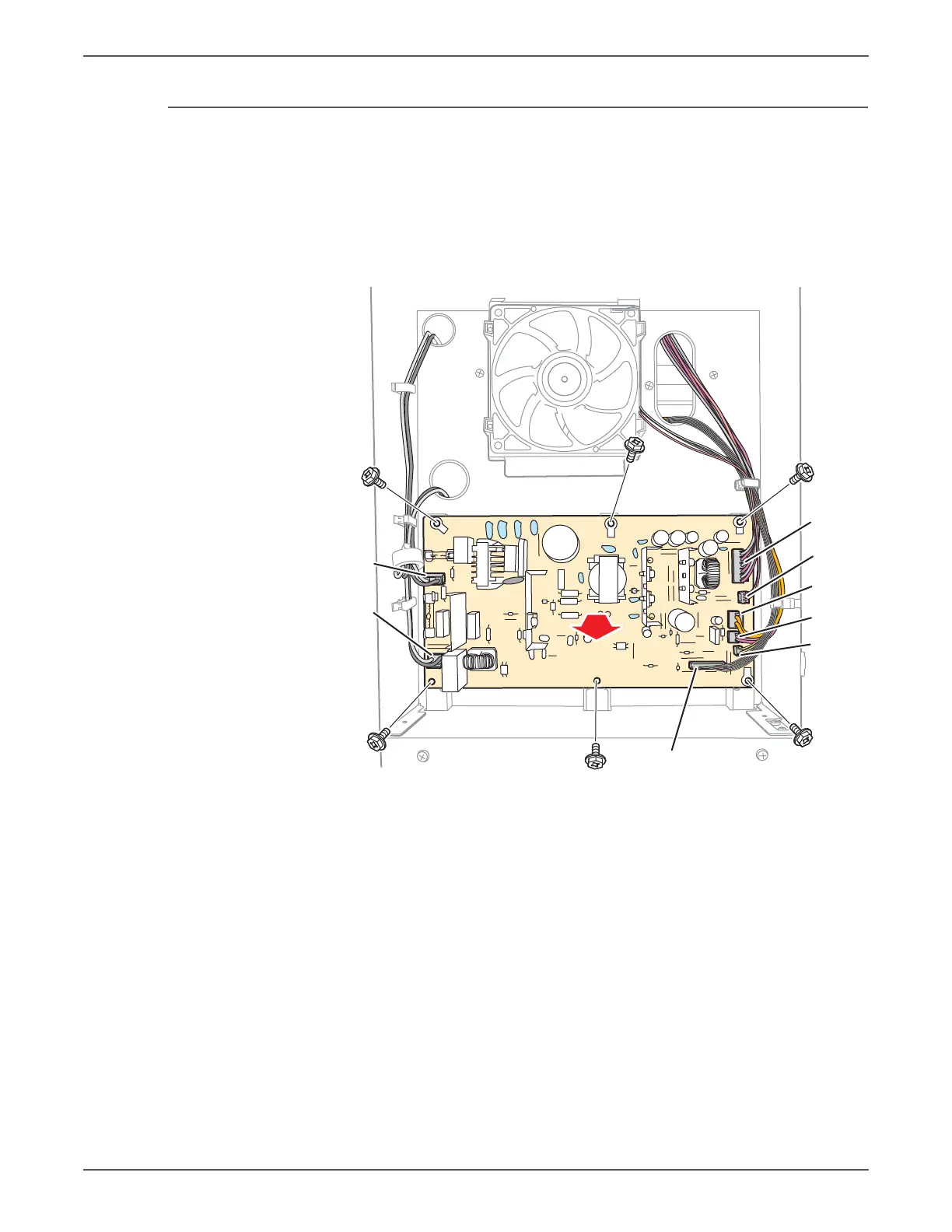

6. Remove the 6 screws (silver, with flange, 6mm).
s6500-334
P/J48
P/J47
P/J40
P/J503
P/J44
P/J502
P/J504
P/J501
To Next Page
