Xerox Phaser 6500 Service Manual

2-12 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation

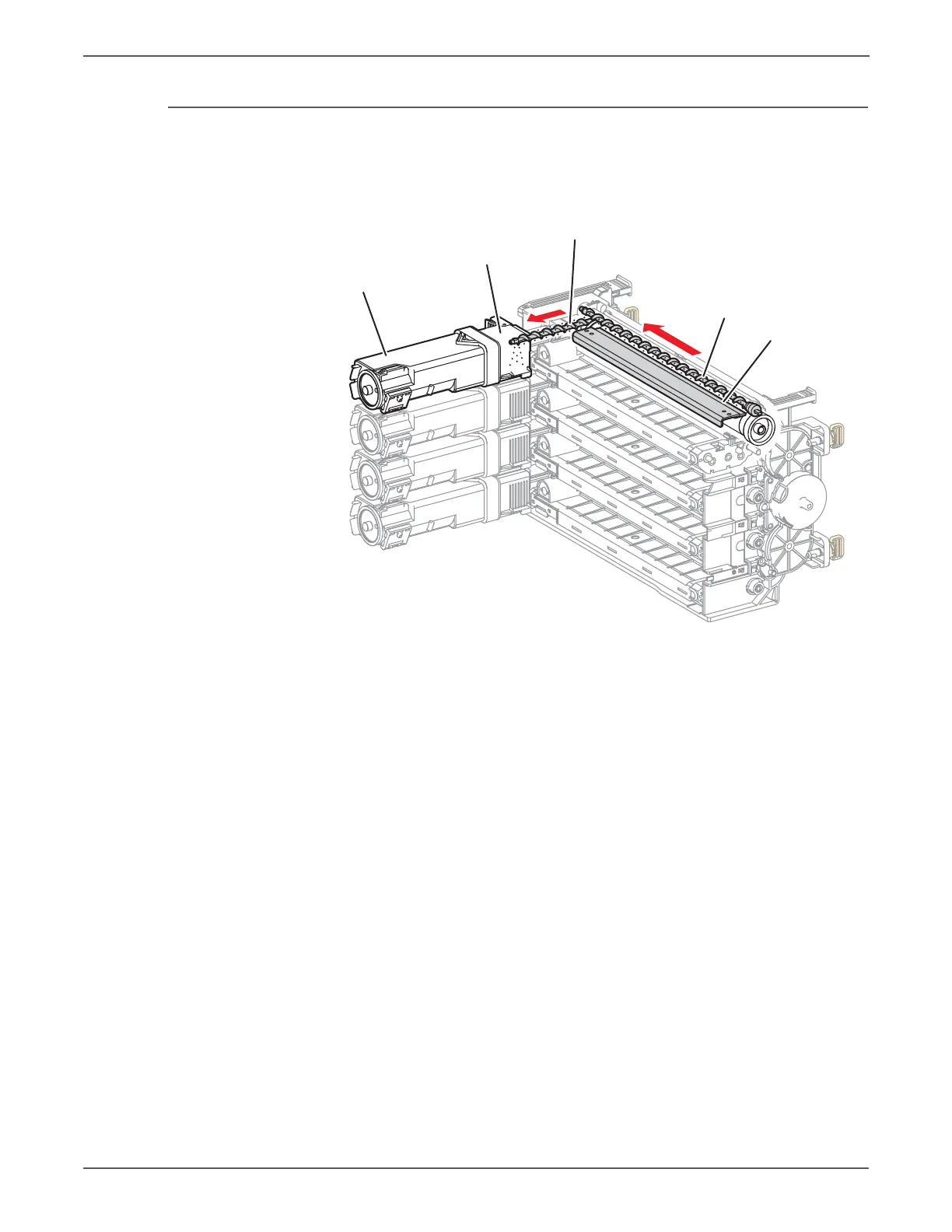

Excess Toner Collection
The excess toner is collected by the cleaner blade contacting the drum. Two augers
move the excess toner to the waste collection box in the Toner Cartridge. The
waste toner is not reused, but is discarded along with the cartridge when the
cartridge is empty.
s6500-029
Toner Cartridge
Collection Box
Auger Cleaning Side
Auger
Cleaner Blade
