Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-75
Service Parts Disassembly
Registration Roller
PL3.2.9 (Roll Assy Regi)
Note
This procedure applies to both the SFP and MFP.
1. Remove the Upper Frame Assembly (SFP page 8-51; MFP page 8-67).
Note
The Registration Out Actuator is tensioned by a small spring located
under the actuator.

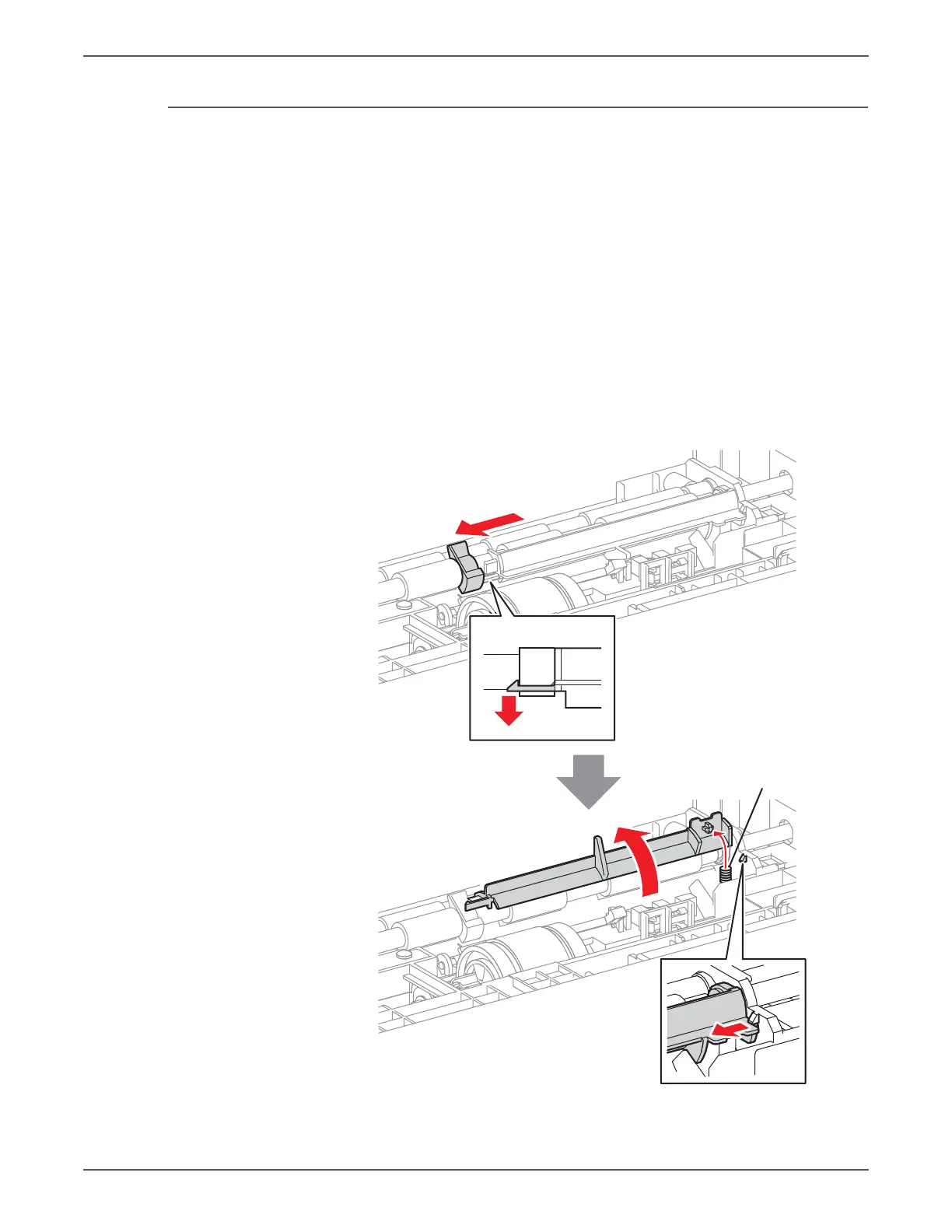

2. Release the hook on the Registration Out Actuator that attaches it to the
Registration Roller Actuator; shift the Registration Roller Actuator to the right.
3. Release the Registration Out Actuator from the hook on the Upper Feeder
Chute, then rotate the Registration Out Actuator in the direction shown.
s6500-366
Registration Out Spring

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
