8-76 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

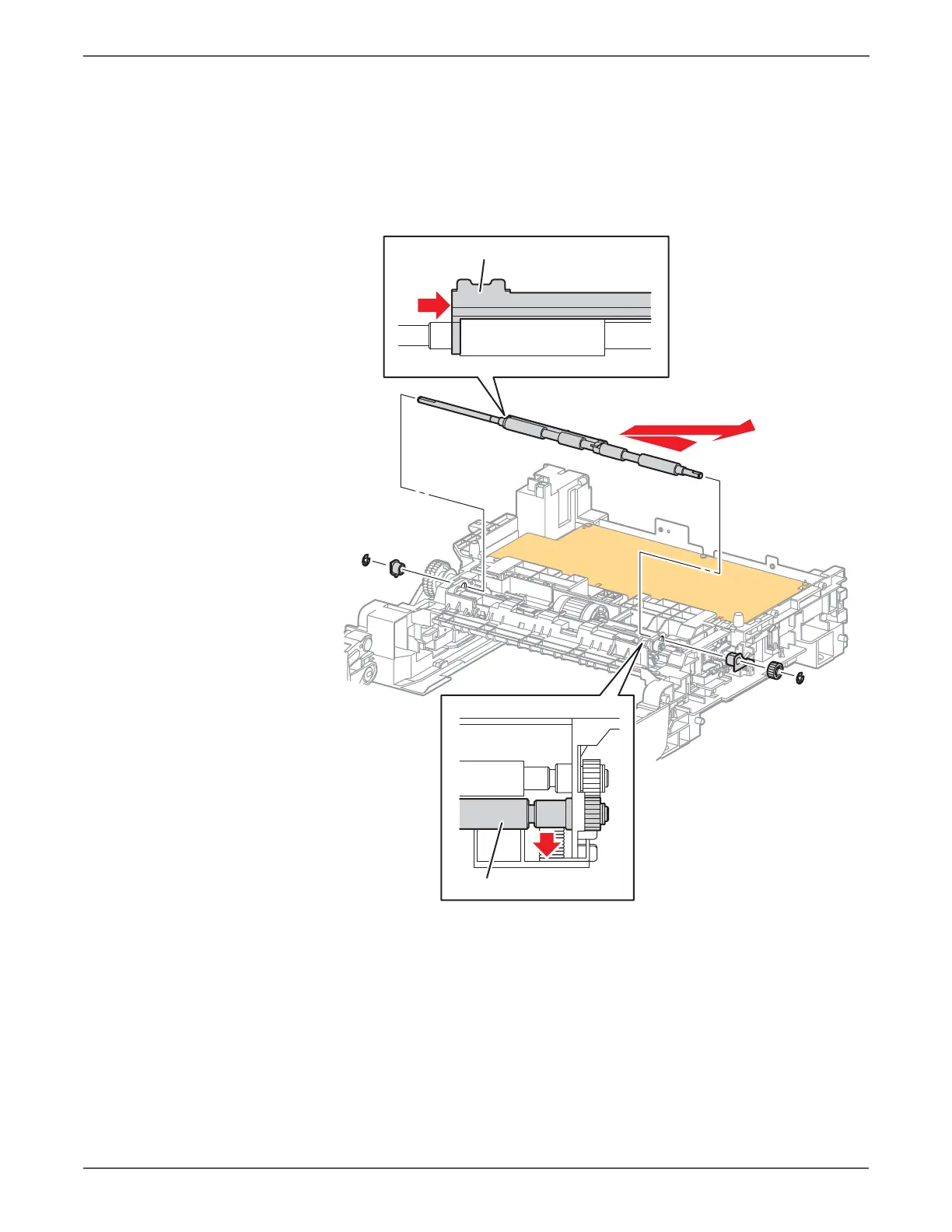

4. Remove the E-rings at both ends of the Registration Roller; use a miniature
screwdriver.
5. Push the metal registration roller toward the front to take the pressure off the
Registration Roller, and remove the Registration Gear and bearings from the
shaft.
6. Shift the Registration Roller left to release the shaft from the Feeder Assembly,
then to the right to remove Registration Roller (with actuators) from the
Feeder Assembly.
s6500-244
Registration Out Actuator
Metal Registration Roller
