Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-161

Service Parts Disassembly

MFP EEPROM Board

MFP PL8.3.4 (PWBA EEPROM [XPRO])

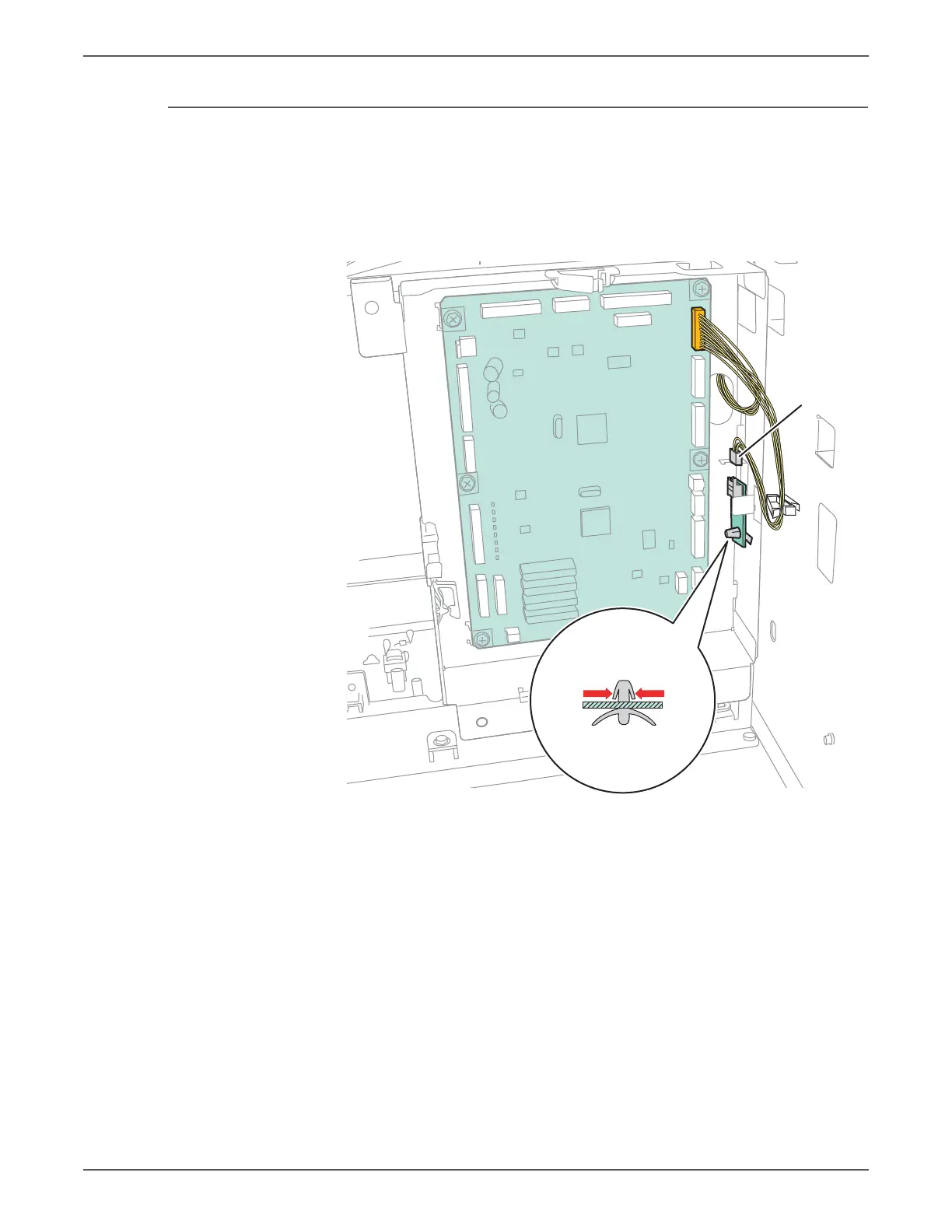

1. Remove the LVPS Card Cage (page 8-64).

2. Disconnect P/J144 from the EEPROM Board.

3. Squeeze the latches on the board mount, then release the hooks holding the

EEPROM Board to the frame.

P/J144

s6500-345
