Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-15
Print-Quality Troubleshooting
Vertical Blank Lines
There are faded or completely non-printed lines along the page in the direction of
the paper travel from the leading edge to the trailing edge.
Initial Actions
• Check the area around the Laser Unit windows and openings in the Imaging
Unit. Small obstructions, such as hair or fibers, can create streaks.
• Ensure there is no debris on the media path.
Troubleshooting Reference Table

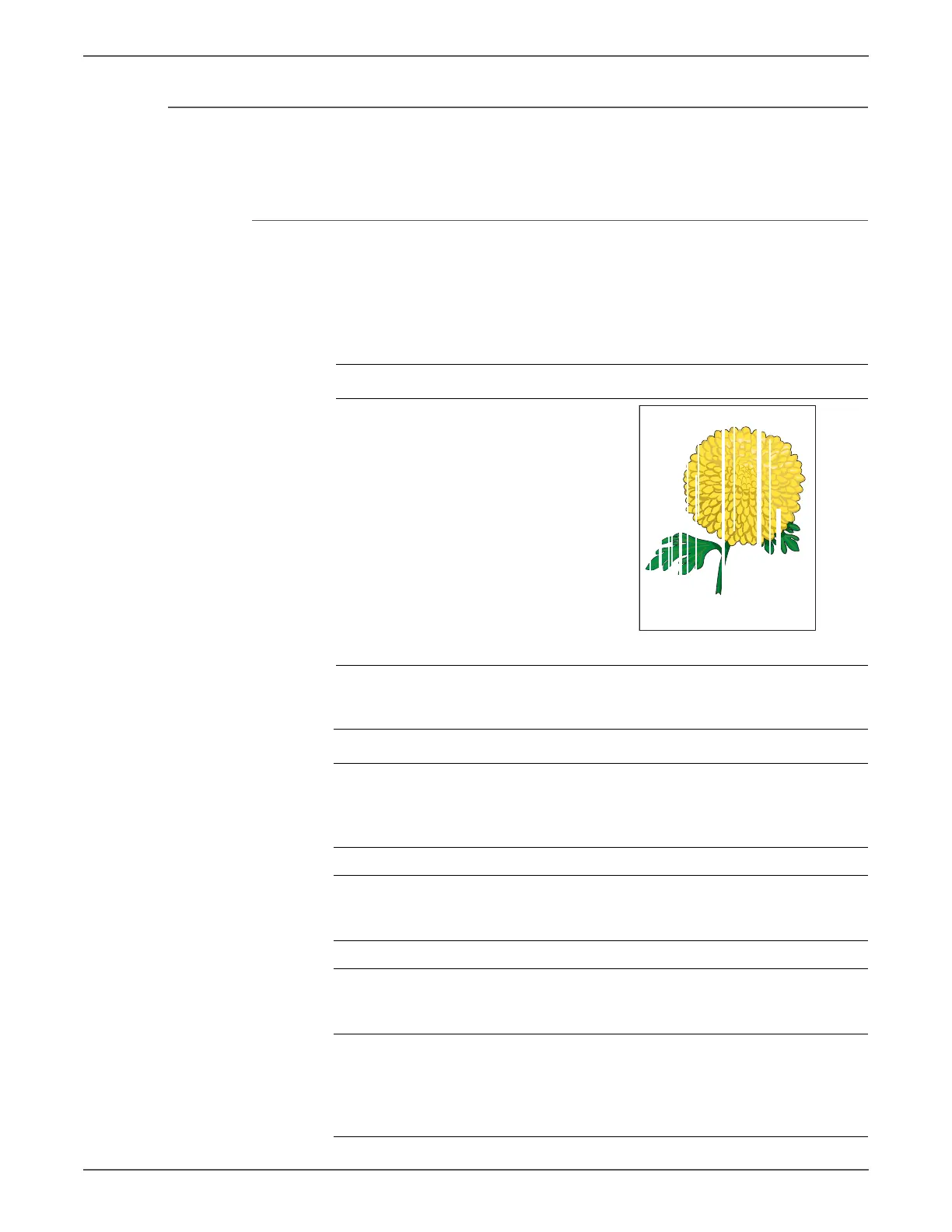

Applicable Parts Example Print
Imaging Unit, PL4.1.21
Laser Unit, PL4.1.99
Transfer Belt, PL6.1.7
IP Board, PL8.1.7
MCU Board, PL8.2.13
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Check media condition
Is the media dry and approved for
use?
Go to step 3. Replace with
dry, approved
media, then go
to step 2.
2 Is the image printed correctly? Complete Go to step 3.
3 Inspect the media path between the
Transfer Belt and Fuser.
Is there any debris?
Remove any
debris, then go
to step 4.
Go to step 5.
4 Is the image printed correctly? Complete Go to step 5.
5 Inspect the Transfer Belt surface.
Is there any damage to the transfer
belt surface?
Replace the
Transfer Belt
(page 8-112).
Go to step 6.
6 Check the Transfer Belt high-voltage
connections.
Are the contacts on the Transfer Belt
and springs damaged or dirty?
Clean or
replace the
Transfer Belt
contacts or
spring(s).
Go to step 7.
Vertical Blank Lines

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
