Xerox Phaser 6500 Service Manual

8-182 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Feed Roller
PL12.4.4
1. Remove the Optional Feeder (page 8-167).
2. Remove the Chute Cover (page 8-170).

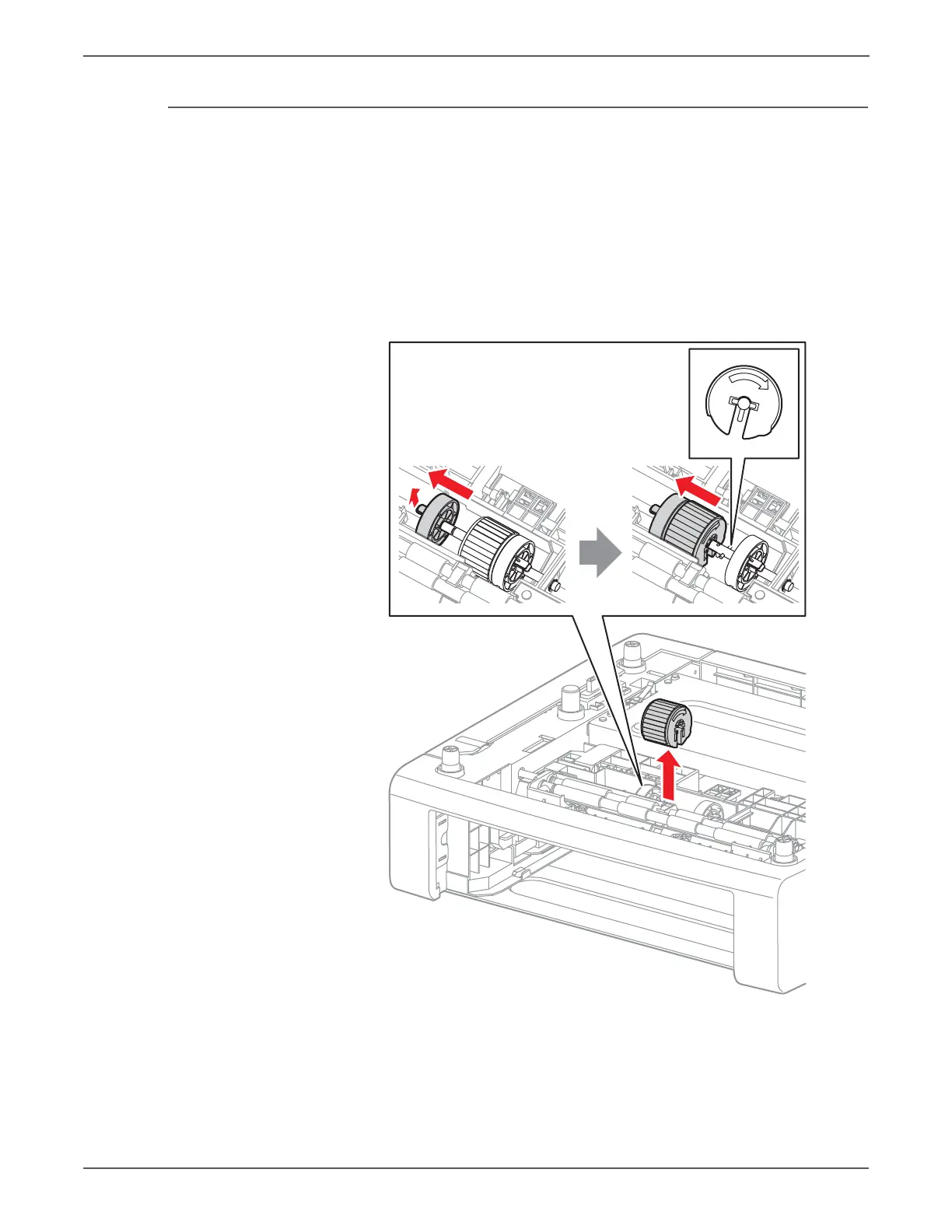

3. Release the hook on the left side of the roller. Move the roller core to the left
side.
4. Move the Feed Roller to the left, so that the grooves in the Feed Roller are clear
of the pins on the feed shaft.
5. Rotate the Feed Roller 180
o
on the feed shaft and allow the Feed Roller to
drop off the shaft.
Replacement Note
The Feed Roller fits over the pins on the feed shaft in only one direction. Note
the location of the Feed Roller grooves when installing the roller on the shaft.
s6500-365
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
