Xerox Phaser 6500 Service Manual

8-10 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Fuser
PL6.1.1 (Fuser 110V or Fuser 220V)
Warning
Allow the Fuser to cool before using this procedure.
Note
Although the illustrations for this procedure show the SFP, the details for
removing the Fuser are the same for the MFP.

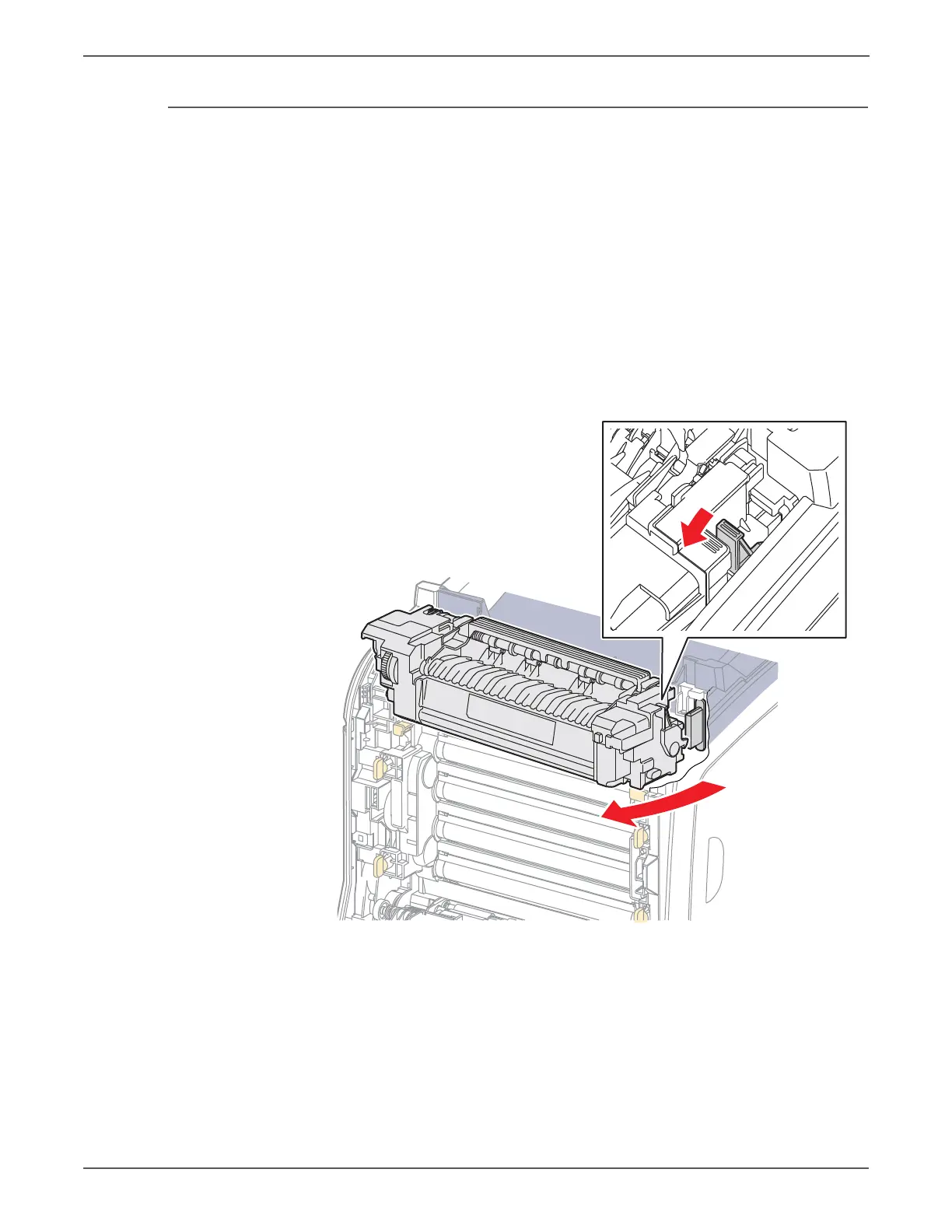

1. Open the Front Cover.
2. Lower the Transfer Belt.
3. Pull the lever to release the lock.
4. Swing the right side of the Fuser toward you with the lever released to unplug
the Fuser connector
5. Lift the Fuser up, then to the right to remove it.
s6500-179
