Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-31
Theory of Operation
Transfer Belt and Fuser
Transfer Belt
The Transfer Belt consists of the Transfer Belt and ADC Sensor.
• Belt — The belt feeds media toward the Fuser.
• ADC Sensor — The ADC Sensor detects test toner patches on the belt and
converts them to voltage value. The voltage value is used to control toner
density.
Fuser
The Fuser fixes transferred toner onto the paper using heat and pressure and feeds
the paper before and after toner is fixed. The Fuser consists of these components:
heat roller, heater lamp, thermostat, temperature sensors, pressure belt, exit roller,
and exit sensor.
• Exit Sensor — The exit sensor detects printed pages after fusing.

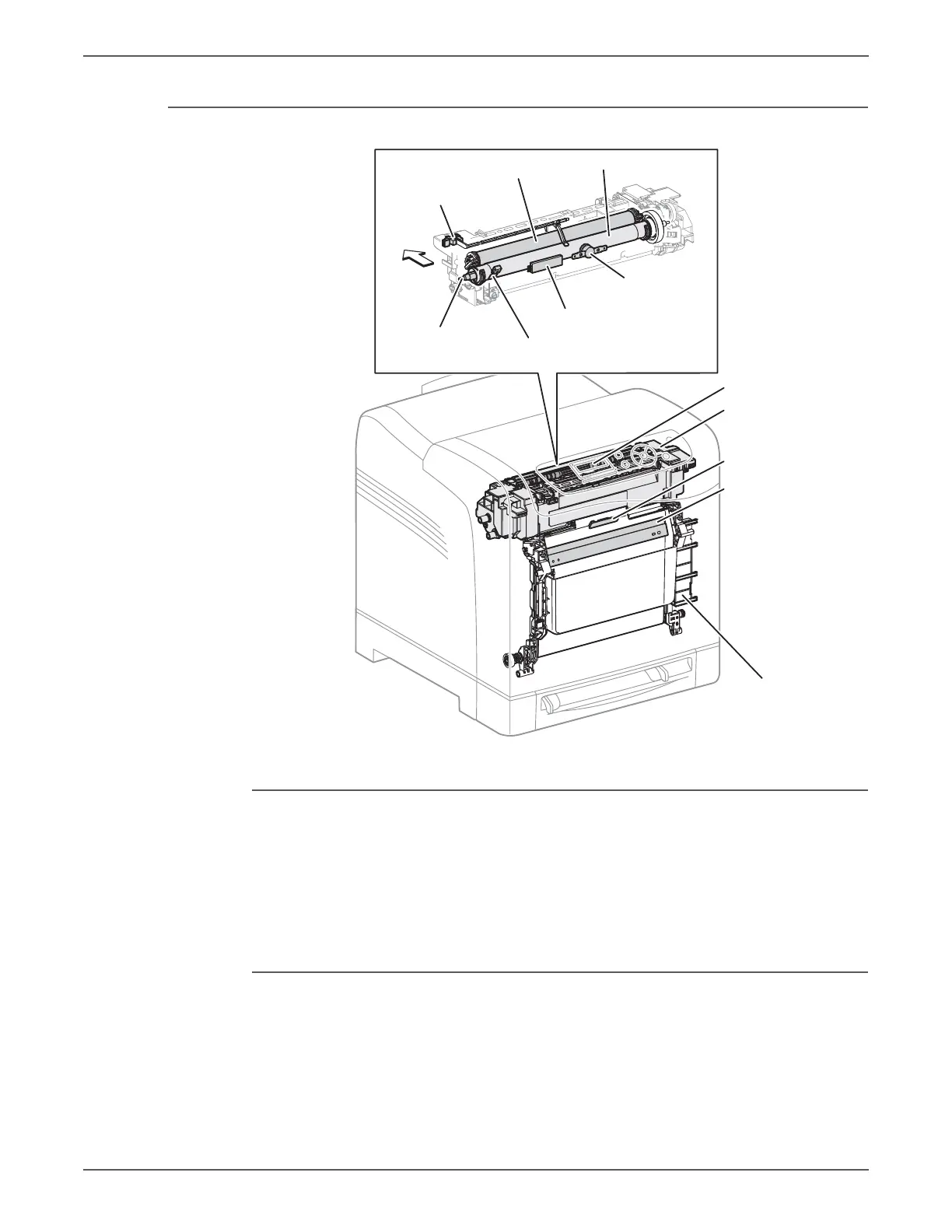

s6500-048
Exit Roller
Transfer Belt
ADC Sensor
Blade
Assembly
Fuser
Heat Roller
Heater Lamp
Thermostat
Temperature Sensor
Temperature Sensor
Pressure Belt
Rear View
Exit Sensor
Front

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
