8-6 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Maintenance Items and Consumables
Maintenance items common to the SFP and MFP include the Separator Holder in
the Paper Tray, Imaging Unit, and Fuser. Consumables consist of the four Toner
Cartridges.
Maintenance items unique to the MFP include the ADF Feed Roll Assembly and
ADF Separator Pad.
Separator Holder
PL2.1.5 (Holder Assy Separator)

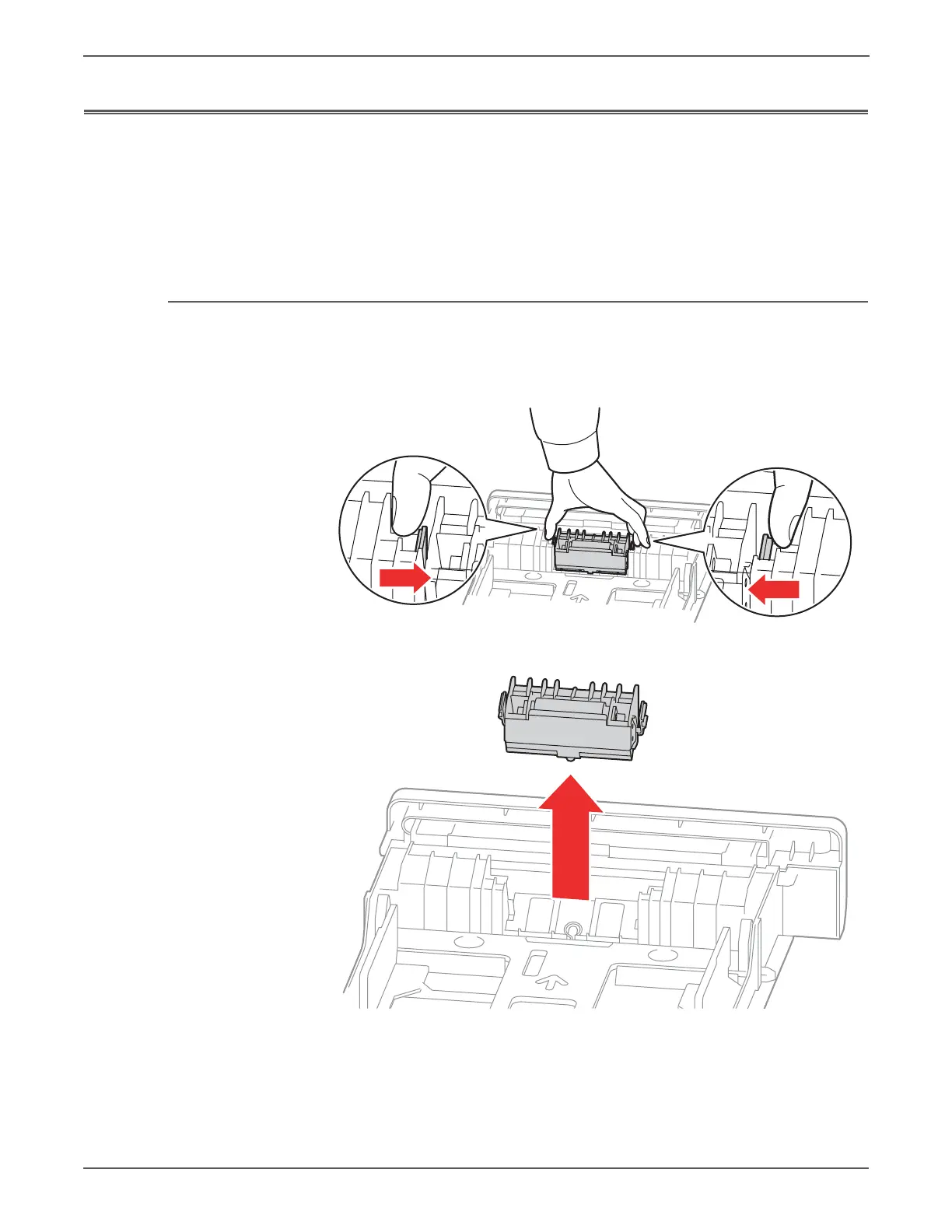

1. Hold the tray and pinch the left and right hooks of the Separator Holder.
Swing the Separator Holder to release the two hooks.
2. Pull the Separator Holder up to remove it from the Tray.
s6500-174
s6500-175
