Xerox Phaser 6500 Service Manual

8-40 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

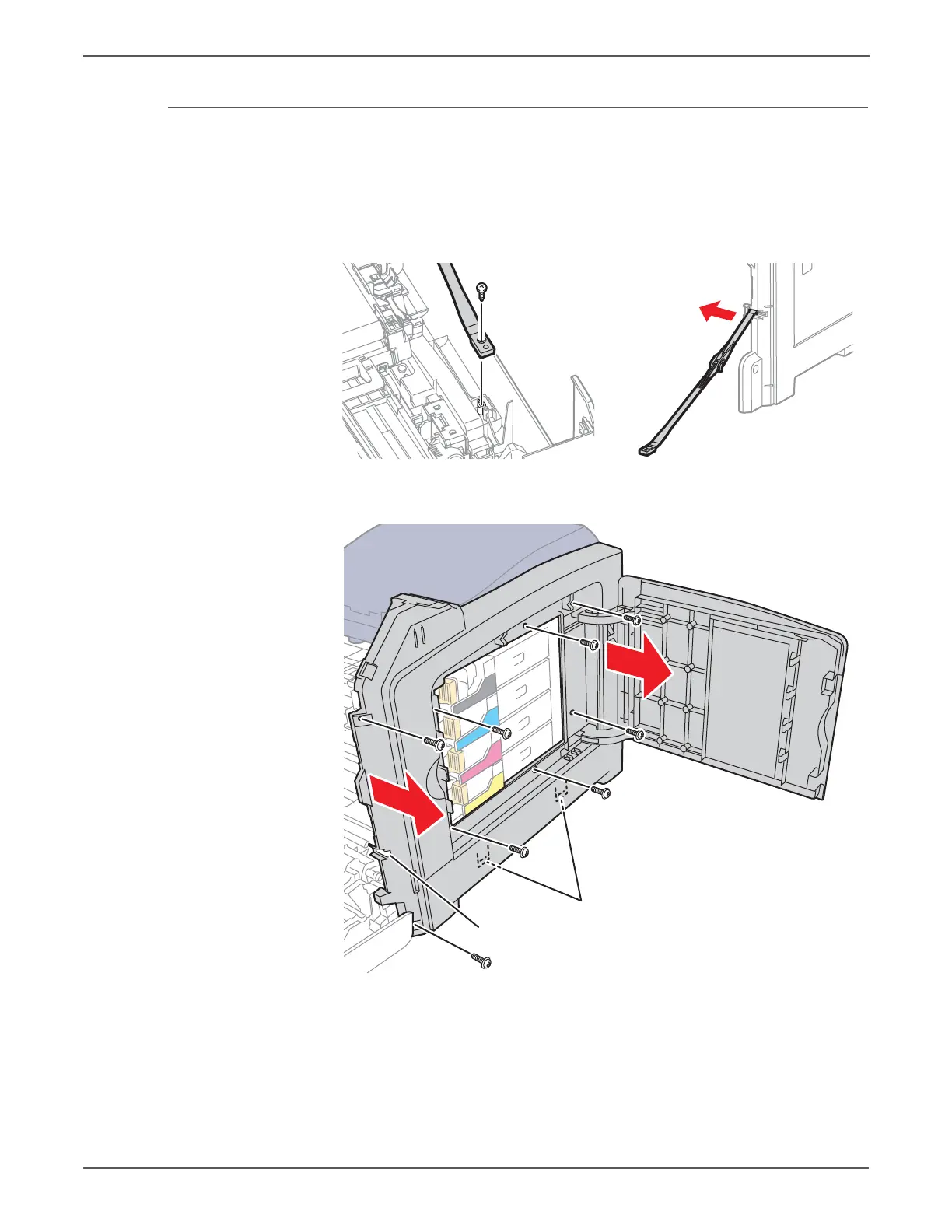

MFP Right Side Cover
MFP PL1.1.6 (Cover Side R)
1. Perform the service preparation steps on page 8-3.
2. Remove the screw (sliver, tap, 8mm) to detach the retainer strap from the
Front Cover Assembly.
3. Open the Toner Door.
4. Remove the 8 screws (silver, tap, 8mm) that secure the cover to the chassis.
5. Release one hook at the front, then two hooks near the bottom to remove the
cover.
s6500-211
s6500-220
Hook
Hooks
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
