Xerox Phaser 6500 Service Manual

8-98 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Dispenser Assembly
PL5.1.1 (Dispenser Assy)
1. Perform the service preparation steps on page 8-3.
2. Remove the Top Cover (page 8-15).
3. Remove the Right Side Cover (page 8-17).
4. Remove the Left Side Cover (page 8-18).
5. Remove the Rear Cover (page 8-20).
6. Raise the Transfer Belt and latch in the upright position.
7. Remove four Toner Cartridge Holders (page 8-107).
8. Remove the IP Board Card Cage (page 8-140).
9. Remove the MCU Board (page 8-138).

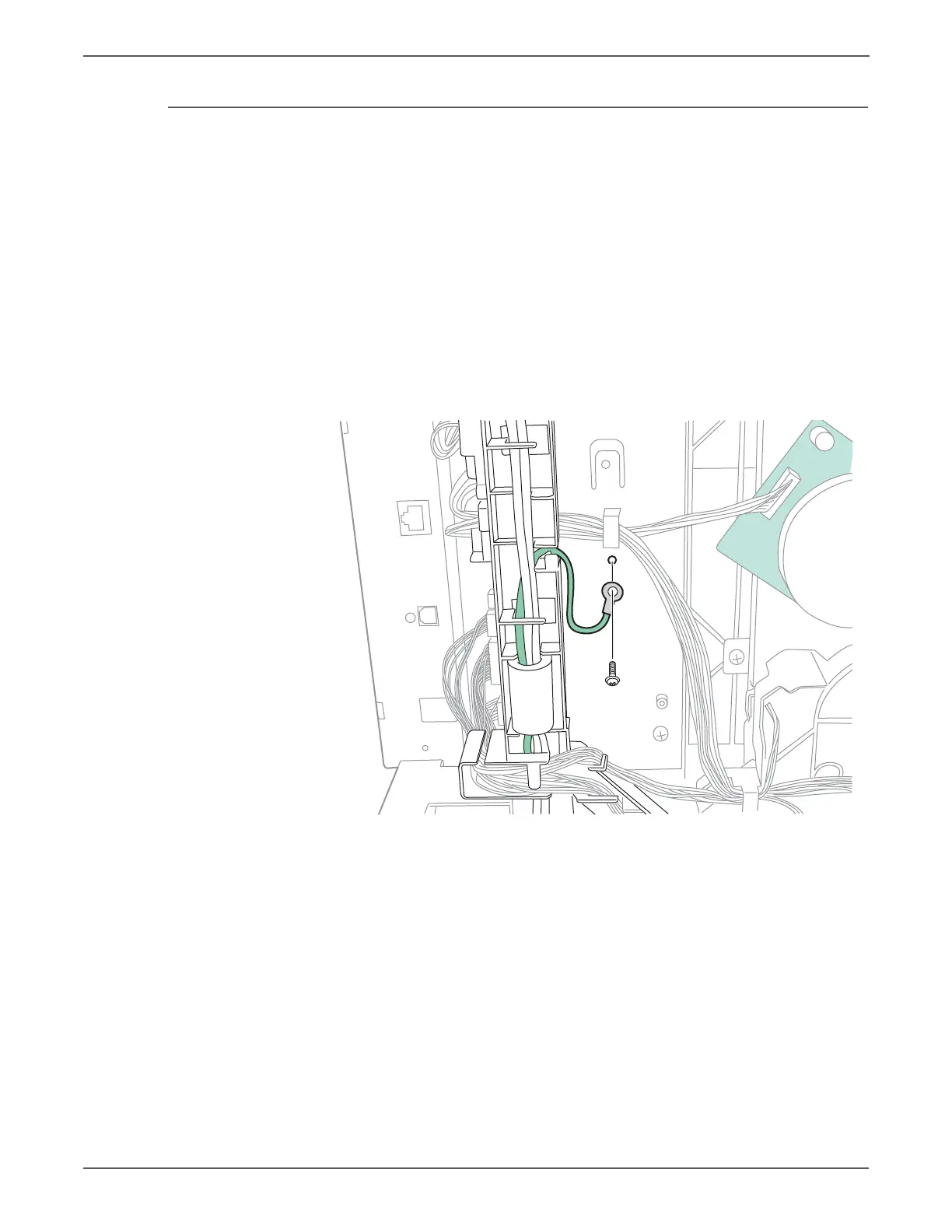

10. Remove the screw (silver, with washer, 6mm) that secures the ground harness
to the chassis.
s6500-266
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
