Xerox Phaser 6500

8-192 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
ADF Assembly
PL 10.10.1
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Remove the ADF Input Tray (page 8-191).

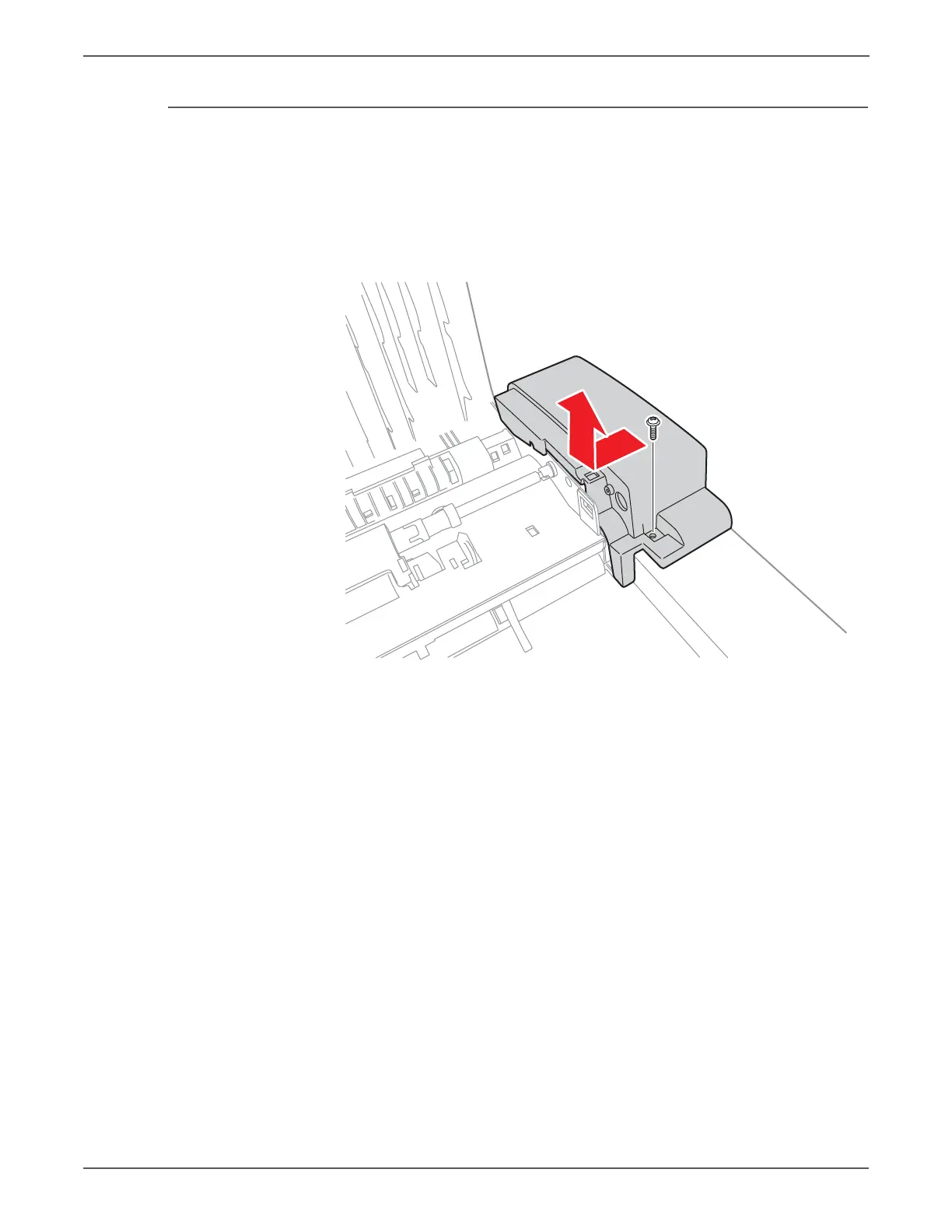

3. Remove the screw (silver, tap, 8mm) that secures the Rear ADF Cover.
4. Slightly raise the right side of the Rear ADF Cover, then move the cover to the
left until 2 hooks release.
5. Remove the screw (silver, 4mm) that secures the ADF Harness grounding
terminal.
s6500-375
