Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-137
Service Parts Disassembly
SFP HVPS Frame
SFP PL4.1.20 (Frame HVPS [SFP Only])
1. Remove the SFP Upper Frame Assembly (page 8-51).
2. Remove eight screws (silver, 6mm) that secure the HVPS Frame to the Feeder.

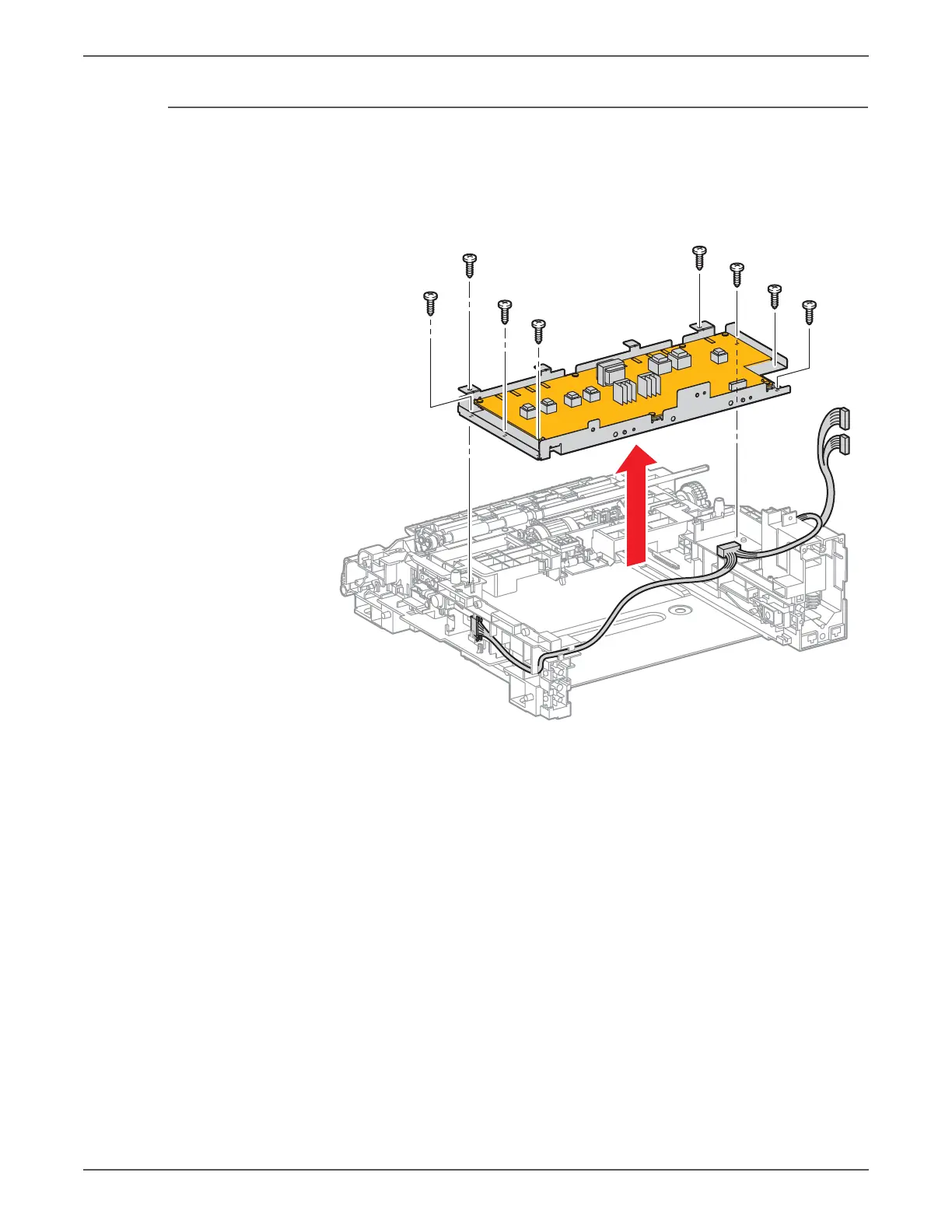

s6500-324
