Xerox Phaser 6500 Service Manual

8-22 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Front Cover
SFP PL1.2.1 (Cover Assy Front)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Toner Door (page 8-21).
4. Remove the SFP Right Side Cover (page 8-17).
5. Remove the Left Side Cover (page 8-18).

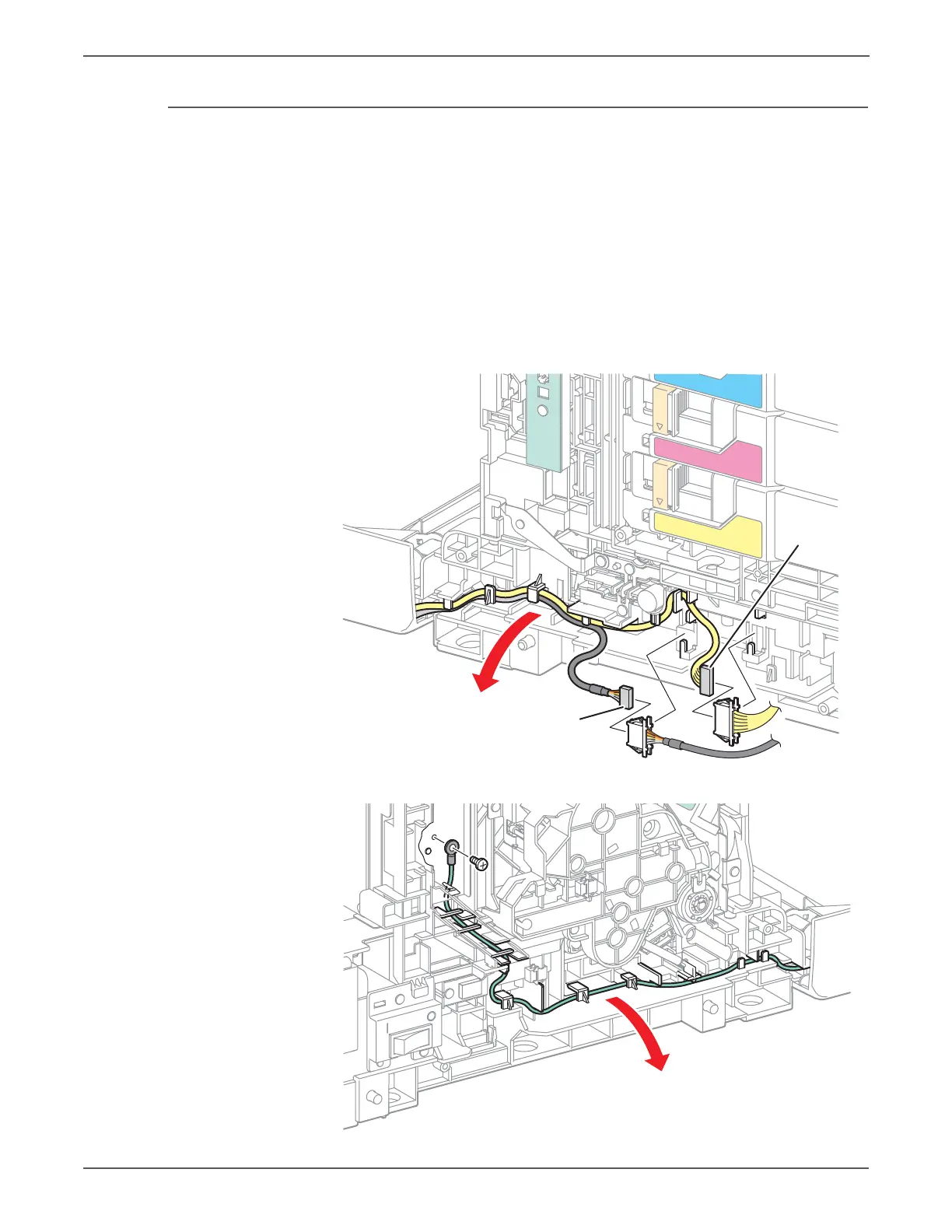

6. Disconnect P/J5301 leaving the relay connector on the Front Cover side
7. Disconnect P/J271 (Duplex model only) leaving the relay connector on the
printer side.
8. Release the harnesses from the guides.
9. Remove the screw that secures the ground harness to the chassis.
s6500-192
P/J5301
P/J271
s6500-193
