Service Parts Disassembly

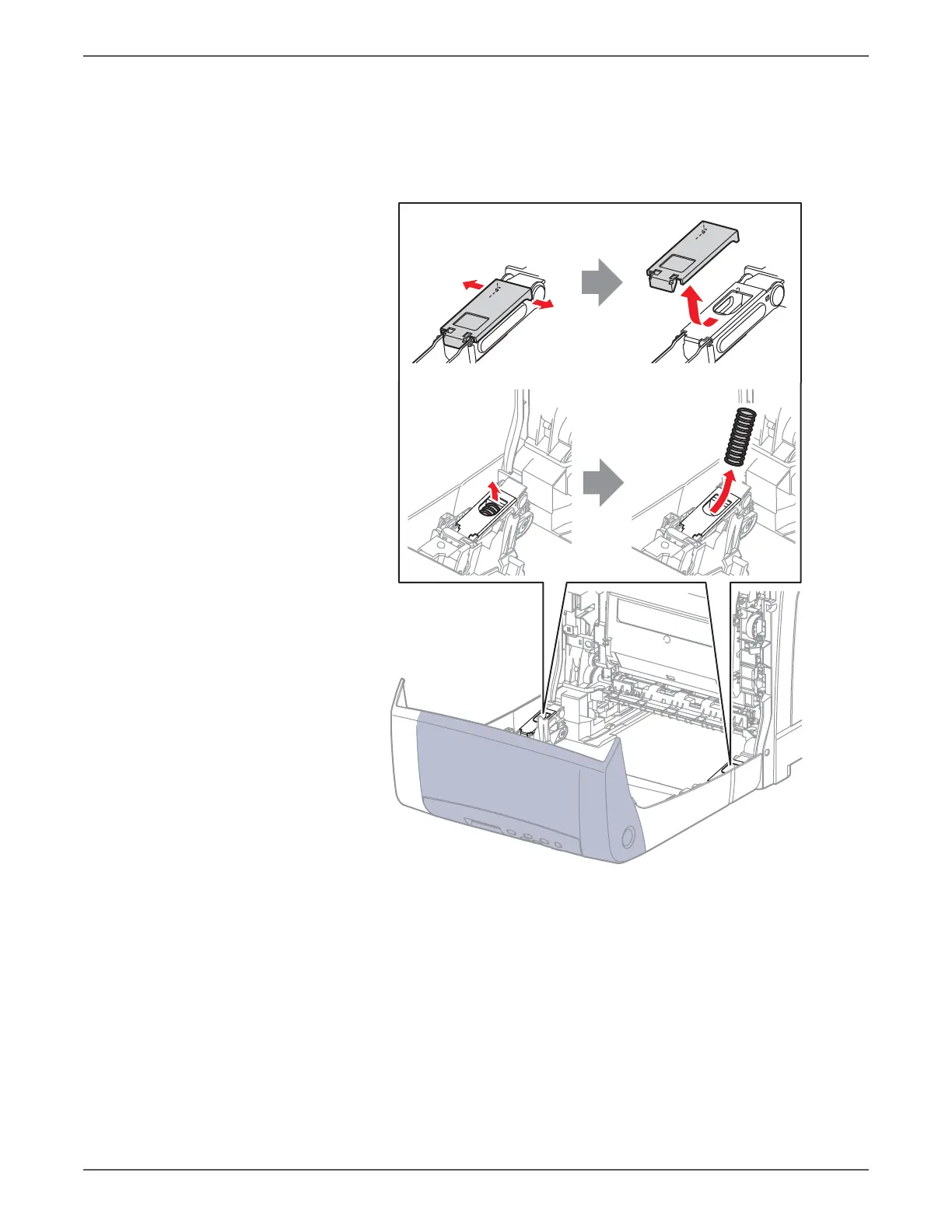

10. Remove the link covers.
a. Release the two hooks that secure the cover to the link.
b. Slide the link cover forward and remove.
11. Lift the Front Cover to expose the end of the spring in the link.
12. Remove the springs from the links.
