8-94 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Right Imaging Unit Restraint Block
PL4.1.97 (Kit Block PHD Right)
Note
The following procedure applies to both the upper and lower Right Imaging
Unit Restraint Blocks.
1. Perform the service preparation steps on page 8-3.
2. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).
3. Remove the Rear Cover (SFP, page 8-20; MFP, page 8-43).
4. Remove the Right Side Cover (SFP, page 8-17; MFP, page 8-40).
5. Remove the Erase LED Assembly (page 8-97).

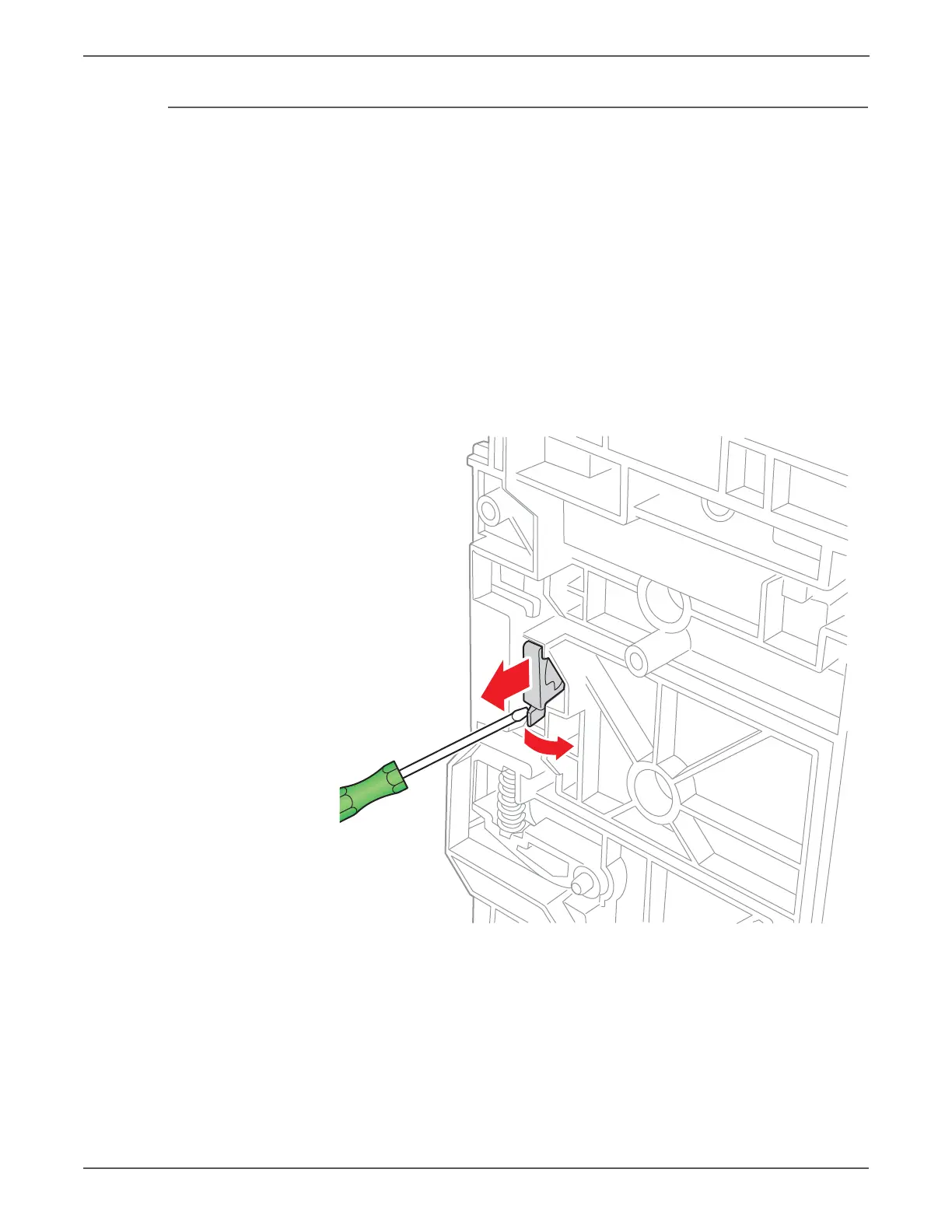

6. Use a miniature screwdriver to release the hook on the Imaging Unit Restraint
Block.
7. Remove the Imaging Unit Restraint Block.
8. Remove the Imaging Unit Spring.
9. Rotate the Imaging Unit Lever slightly and remove it.
s6500-275
