Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-93
Service Parts Disassembly

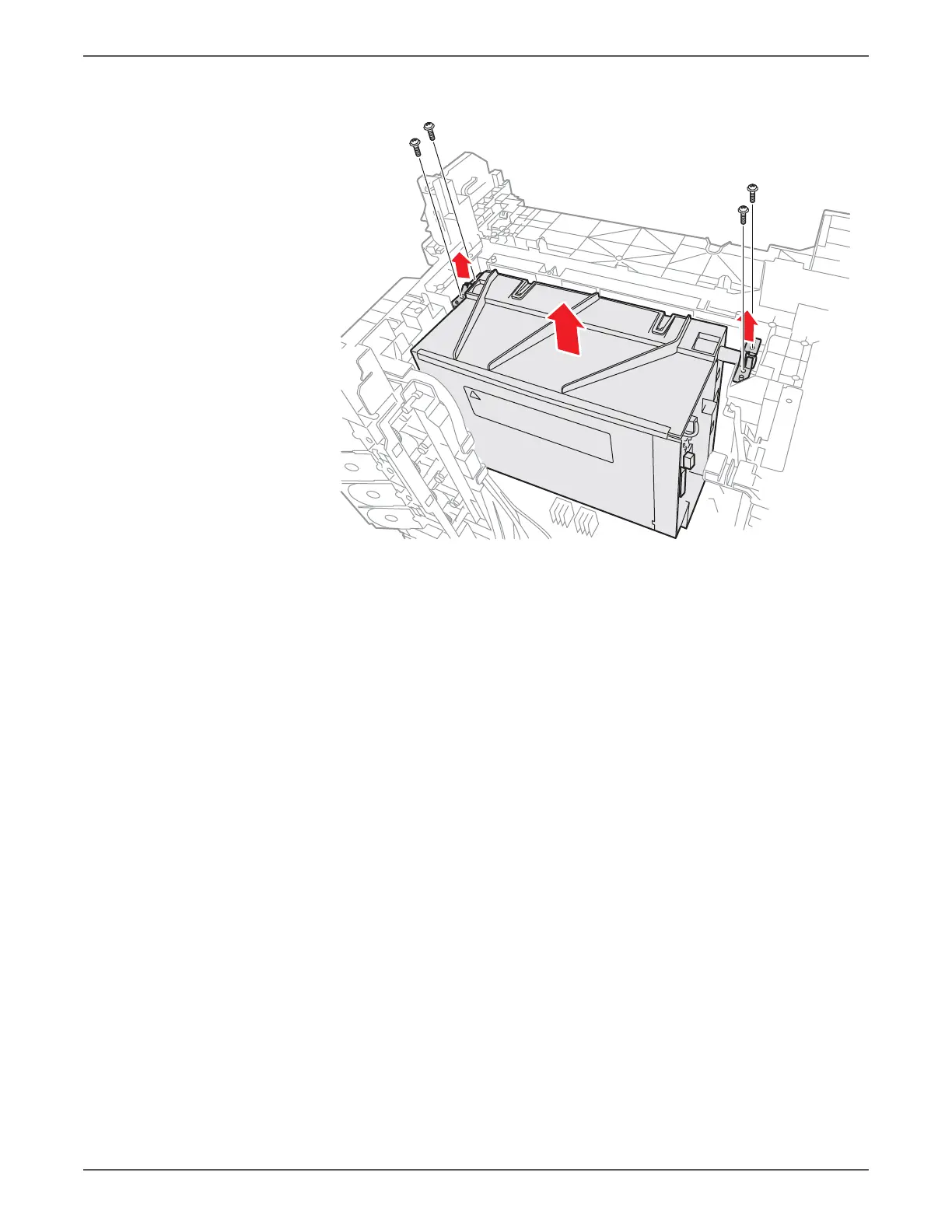

14. Remove four screws (silver, tap 8mm) that secure the left and right Springs
and remove the Springs.
15. Lift the Laser Unit from the chassis.
Note
Perform the following step only if you are replacing the existing Laser Unit
with a new one. Harnesses are not included with the replacement part.
16. Disconnect the 2 Laser Unit harnesses from the Laser Unit (P/J411 and
P/J412).
s6500-272
