8-92 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Laser Unit
PL 4.1.99 (Kit ROS Assy)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Right Side Cover (page 8-40).
6. Remove the Rear Cover (page 8-43).
7. Remove the IP Board Shield (page 8-142).
8. Remove the Inner Pole Cover (page 8-44).
9. Remove the Lower Scanner Cover (page 8-46).
10. Remove the Top Cover (page 8-45).
11. Remove the LVPS Card Cage (page 8-64).
12. Remove the Top Plate Assembly (page 8-59).

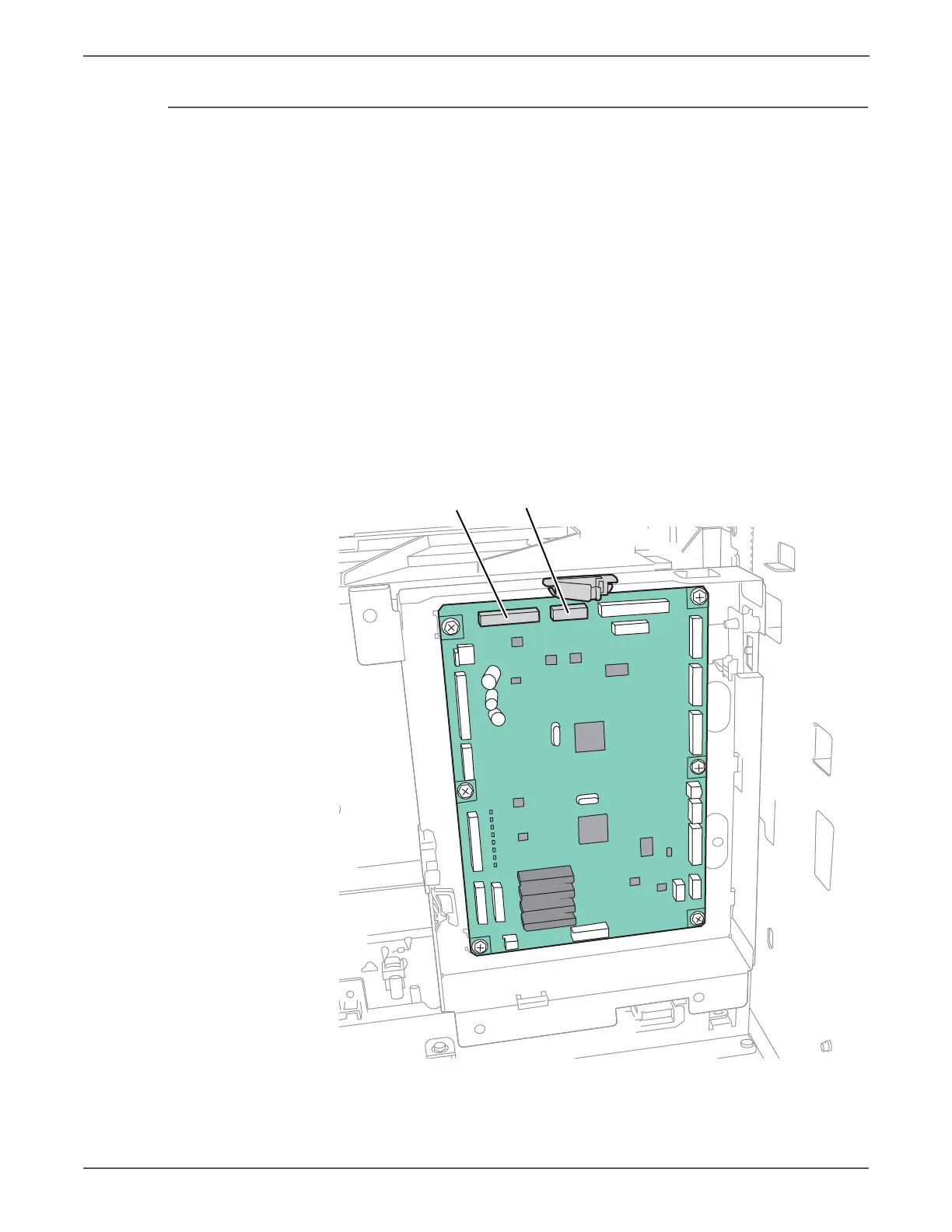

13. Disconnect P/J40 and P/J41 from the MCU Board and release the harnesses
from the edge saddle.
s6500-273
P/J41
P/J40
