8-188 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option No Paper Sensor Actuator
PL12.4.32
Note
To simplify removal of feeder components, rotate the feeder to the rear side.
1. Remove the Optional Feeder (page 8-167).
2. Remove the Chute Cover (page 8-170).

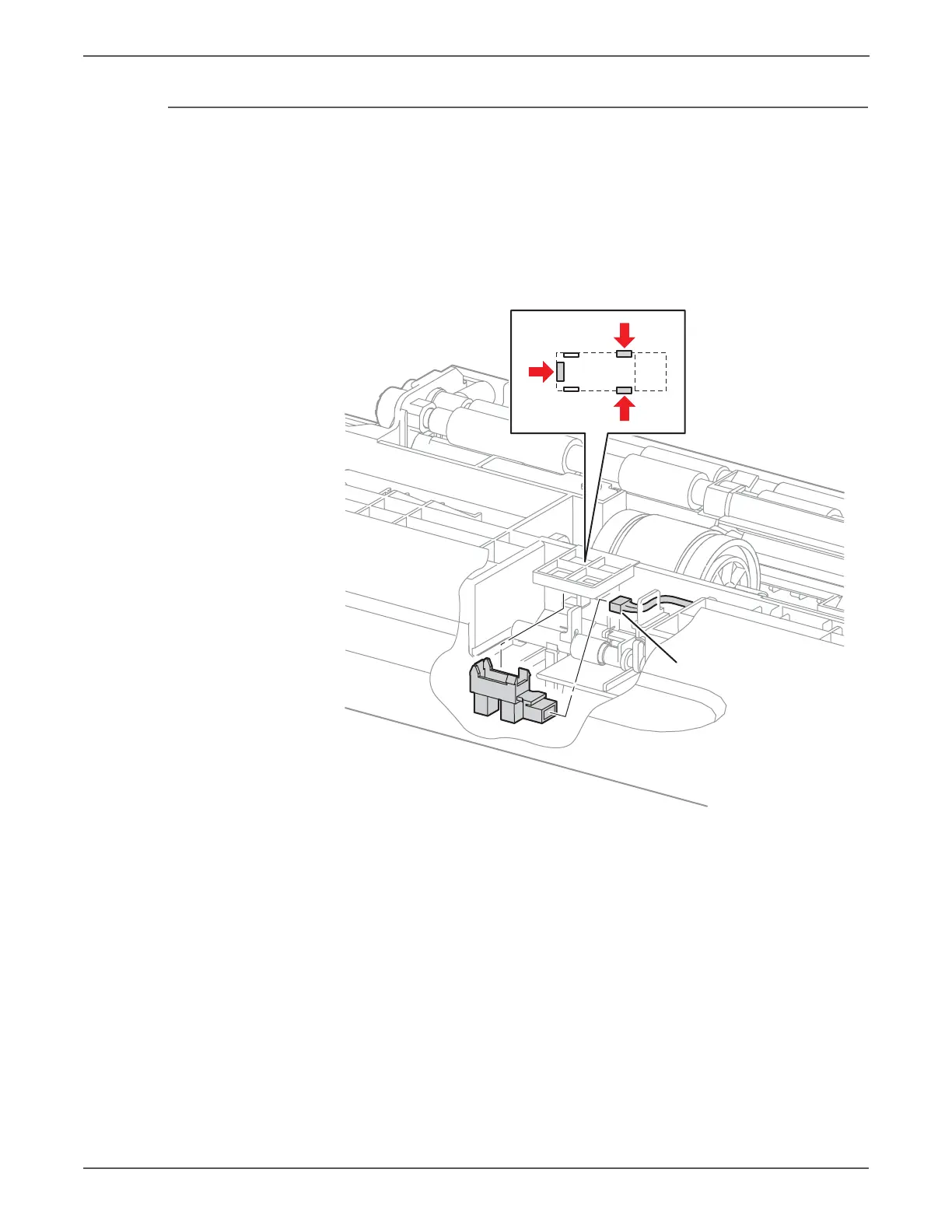

3. Release three hooks that secure the No Paper Sensor to the feeder.
4. Release the right end of the actuator shaft from the frame and remove the
actuator and spring.
Need a picture here!
s6500-369
P/J4212
