Xerox Phaser 6500

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-165
Service Parts Disassembly
Duplex Board
PL11.1.16
1. Open the Front Cover.
2. Remove the Duplex Unit (page 8-162).

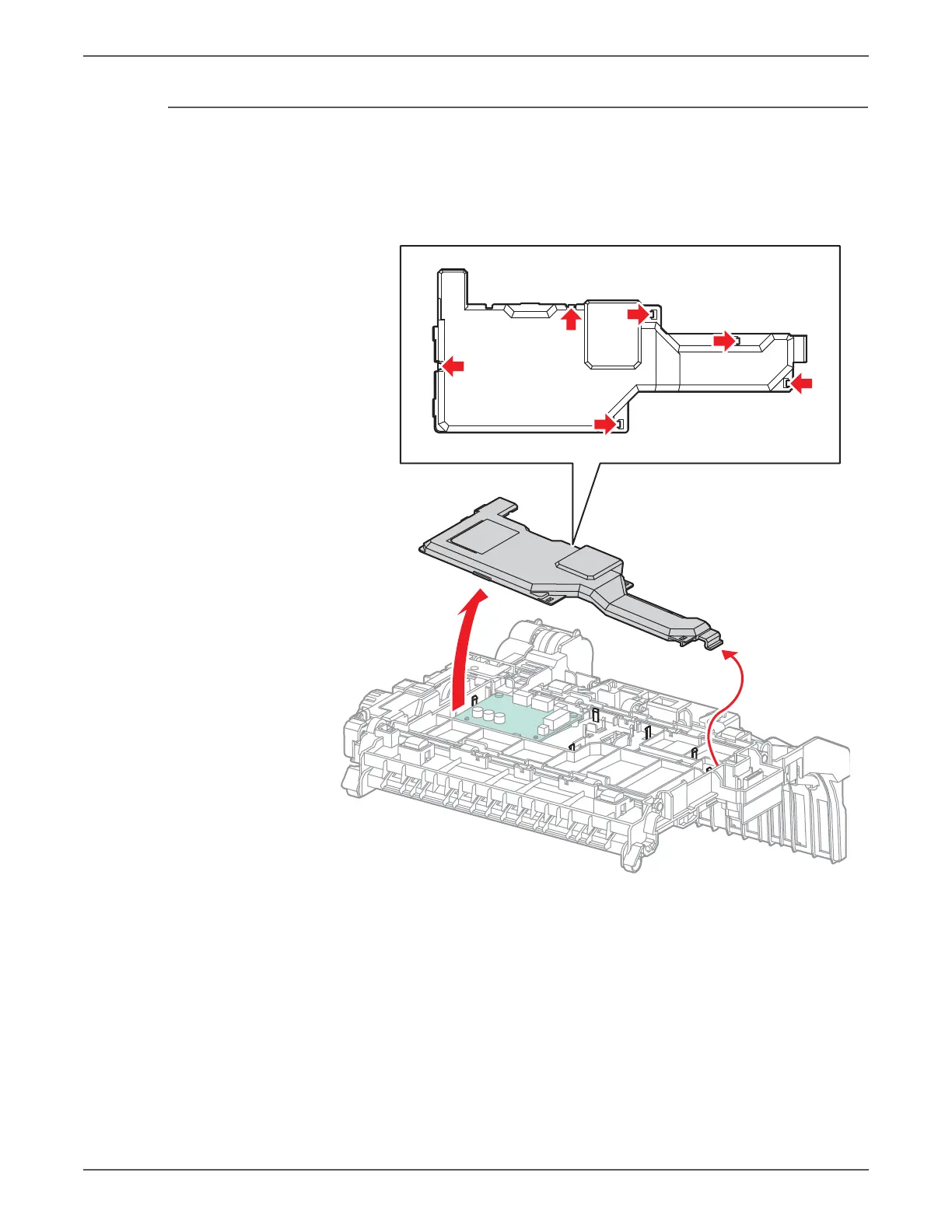

3. Release the 6 hooks that secure the Duplex Board Cover.
4. Unplug all connections to the Duplex Board.
s6500-347
