Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-27
General Troubleshooting
Motor Tests

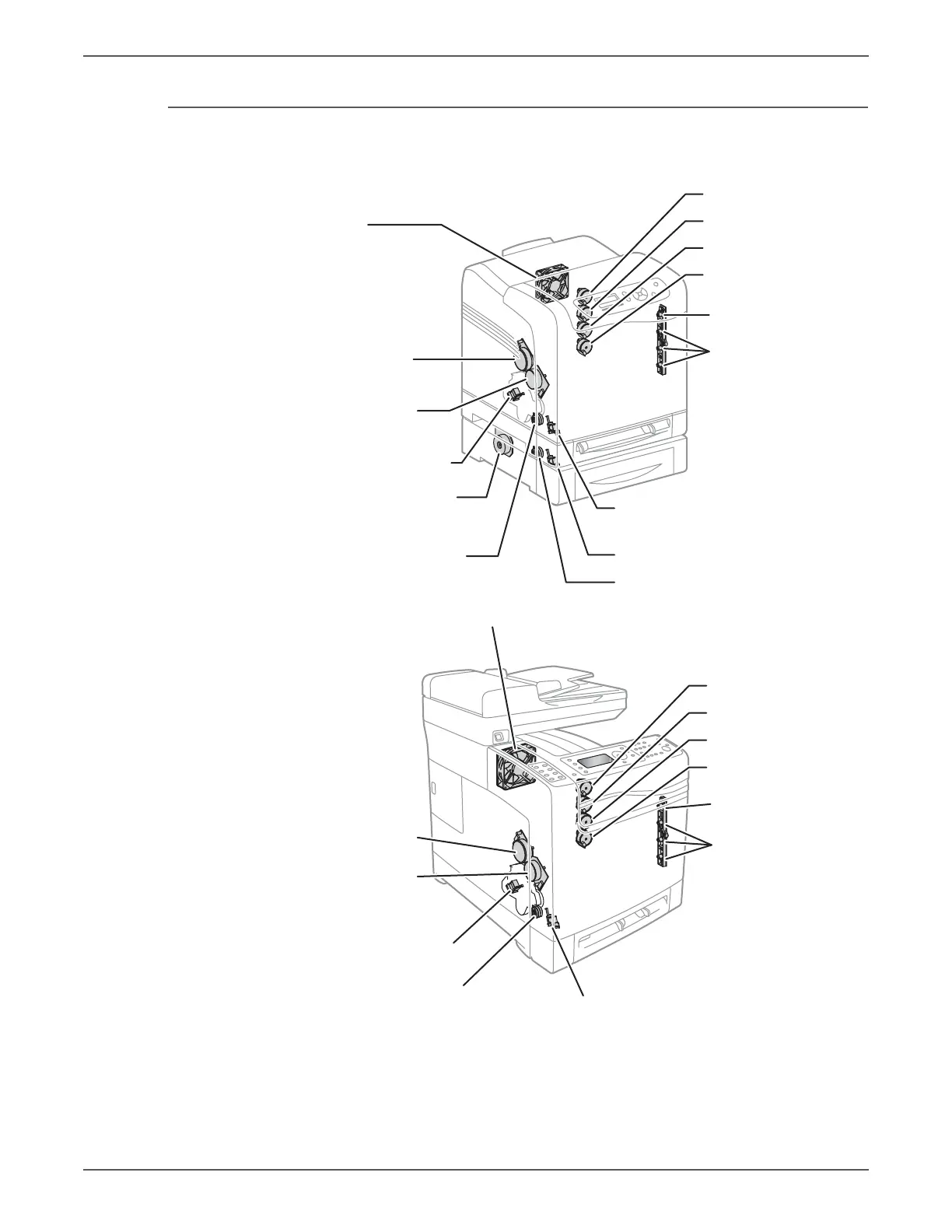

The following test procedures are for print engine motors, solenoids and clutches.
These components are identified below.
s6500-116
Cyan Toner Motor
Tray 1(MPT) Feed Solenoid
Tray 2 Feed Solenoid
Tray 2 Turn Clutch
Black Toner Motor
Magenta Toner Motor
Yellow Toner Motor
Tray 2 Feed Motor
Main Motor
K Mode Solenoid
Sub Motor
Black Drum Erase Lamp
Yellow, Magenta, Cyan
Drum Erase Lamp
Fan
Registration Clutch
s6500-117
Black Drum Erase Lamp
Yellow, Magenta And
Cyan Drum Erase Lamp
Sub Motor
Main Motor
K Mode Solenoid
Tray 2 Feed Solenoid (Half / Full Rotation)
Tray 2 Feed Solenoid (Auto Off)
Fan (High / Low)
Yellow Toner Motor
Magenta Toner Motor
Cyan Toner Motor
Black Toner Motor
Registration Clutch
