4-28 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
K Mode Solenoid

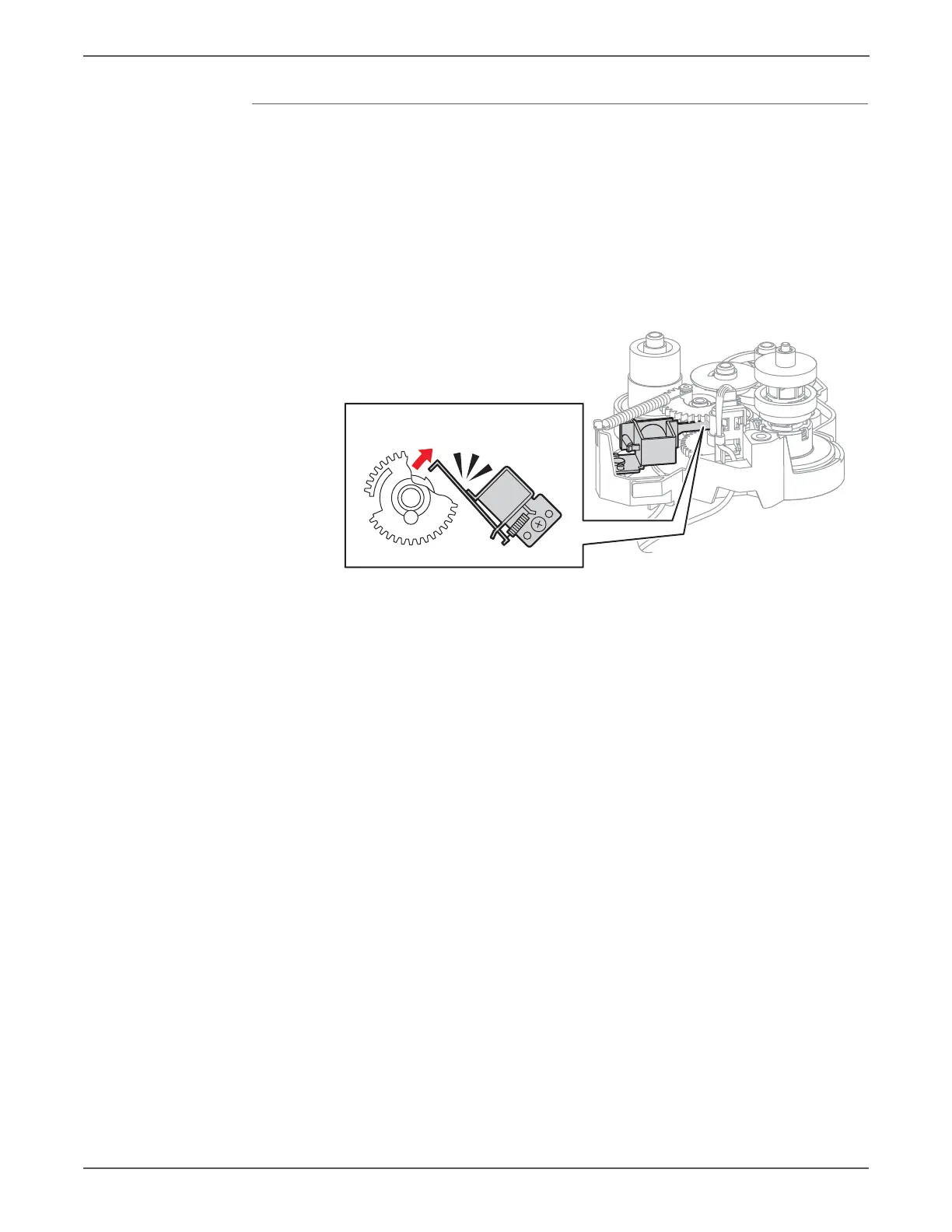

The K Mode Solenoid shifts the gear drive depending on color or mono mode.
Note
Close the Interlock Switch to provide power to the device under test.
1. Remove the Feed Drive Assembly (page 8-117), but leave the harness
connected.
2. Enter Service Diagnostics (page 4-8).
3. Run the K Mode Solenoid test: Engine Diag > Motor Test > K Mode Solenoid.
Note
Press Cancel to stop the test.
s6500-118
