Xerox Phaser 6500 Service Manual

2-20 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
Major Assemblies and Functions
Major functional components are classified into the following categories:
•Tray
• Feeder
• Optional Feeder
•Duplex Unit
•Manual Feed & Registration
• Transfer Belt and Fuser
•Laser Unit
• Toner Cartridge & Dispenser
•Imaging Unit
•Drive
•Electrical
Tray
• Separator Roller
The Separator Roller and Feed Roller pinch the media to prevent multiple
sheets from feeding.
• Left/Right Side Guide
The side guides move at a right angle to the paper transfer direction to align
the paper width.
• Tray End Guide
The end guide moves in toward the paper transfer direction to determine the
paper size.
• Bottom Plate

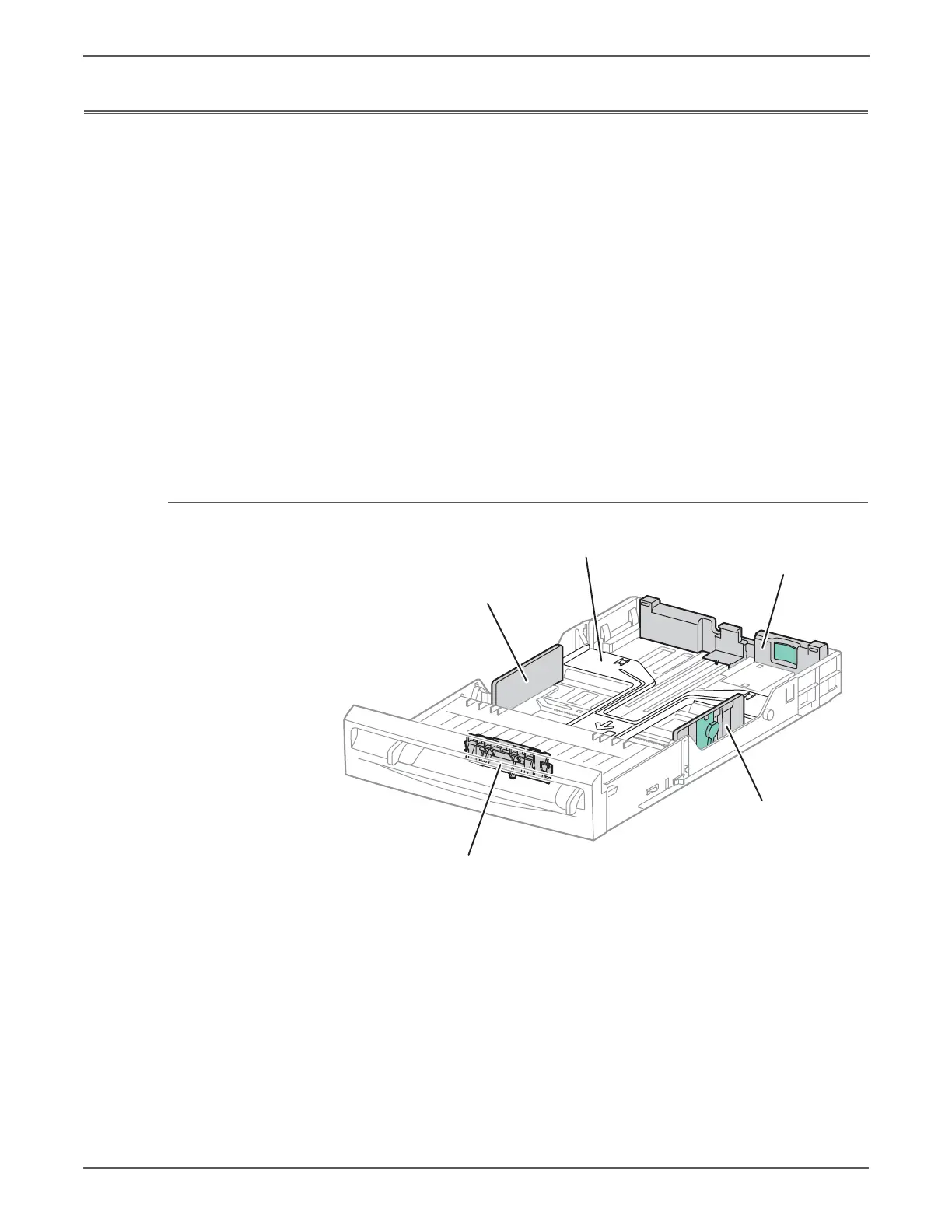

s6500-035
Bottom Plate
Side Guide (L)
Side Guide (R)
End Guide
Separator Roller
