Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-107
Service Parts Disassembly
Toner Cartridge Holders
PL 5.1.17~20 (Kit Holder Assy TCRU [K, C, M, Y])
Note
The following procedure applies to all four Toner Cartridge Holders. They must
be removed sequentially in order, starting with K (black).
1. Remove Tray 1.
2. Remove the Toner Cartridges (page 8-12).
3. Open the Front Cover.
4. SFP Only: Remove the following parts:
a. Top Cover (page 8-15).
b. Right Side Cover (page 8-17).
c. Left Side Cover (page 8-18).
d. Rear Tray Cover (page 8-19).
e. Rear Cover (page 8-20).
5. MFP Only: Remove the following parts:
a. Left Side Cover (page 8-37).
b. Outer Pole Cover (page 8-39).
c. Right Side Cover (page 8-40)
d. Rear Cover (page 8-43).
6. Squeeze the center of the Toner Cartridge Holder to release the Toner
Cartridge Holder from the boss on the Dispenser Frame. Open the Toner
Cartridge Holder by 90 degrees.

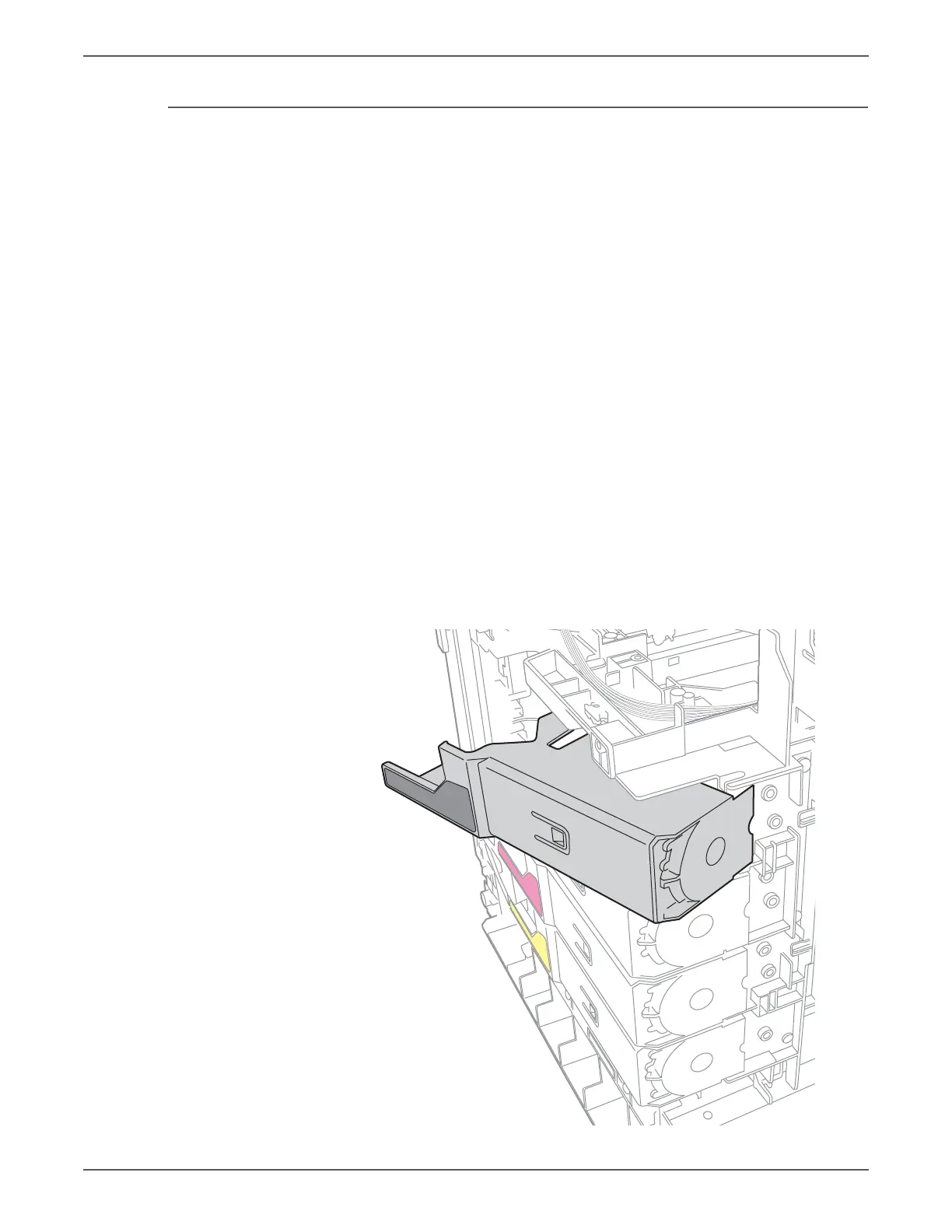

s6500-289
