Service Parts Disassembly

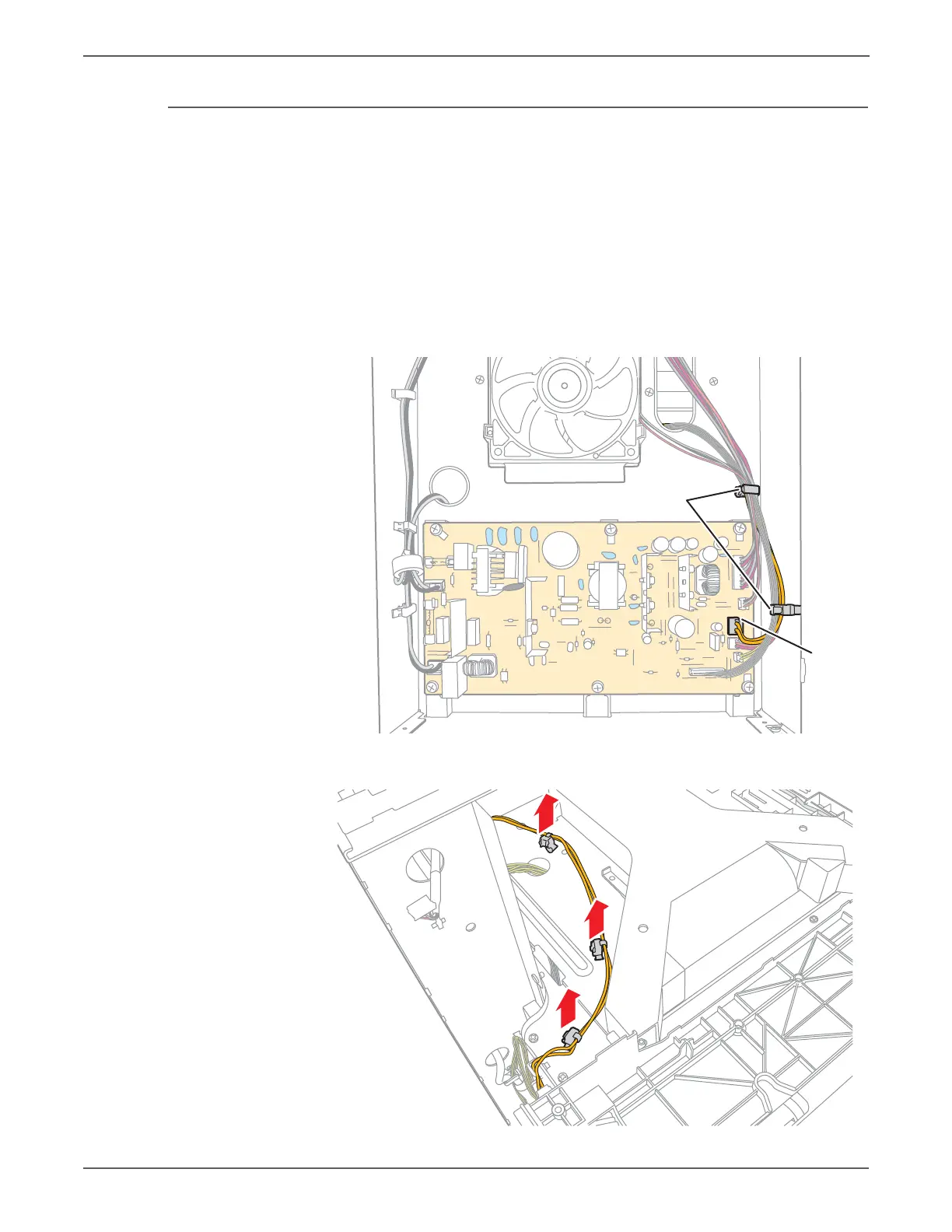

MFP Interlock Harness
MFP PL8.1.1 (Harness Assy Interlock AIO [SW-J44])
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Rear Cover (page 8-43).
6. Remove the Right Side Cover (page 8-40).
7. Remove the Top Cover (page 8-45).
8. Disconnect P/J44 on the LVPS, and release the harness from the two clamps.
9. Remove the 3 clamps on the Top Plate Assembly that secure the harness, then
pull the harness through the hole.
Clamps
s6500-336
P/J44
s6500-337
