Service Parts Disassembly

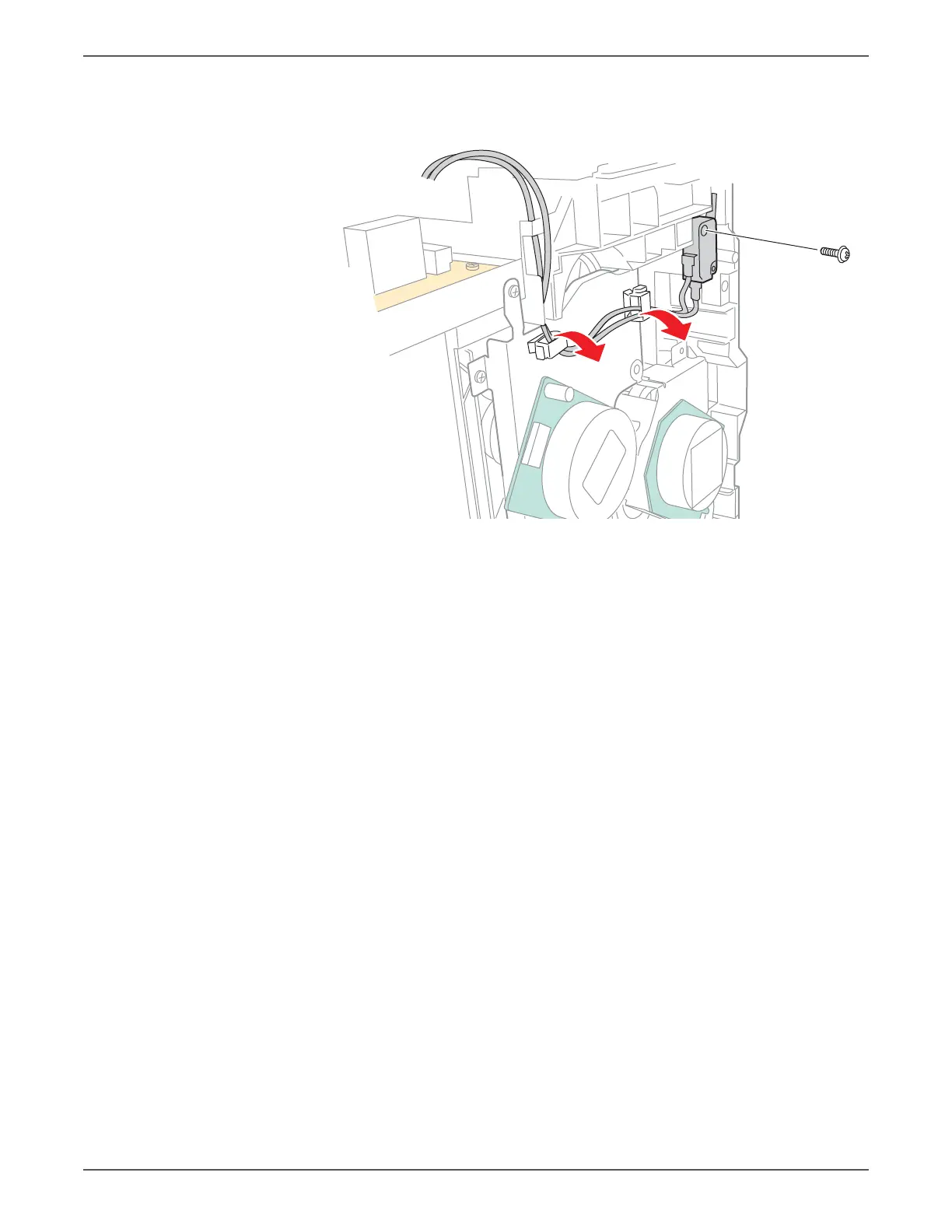

10. Release the harness from the 2 clamps on the chassis.
11. Remove the screw (sliver, tap, 6mm) that attaches the Interlock Harness to
remove the harness.
s6500-338
