Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-141
Service Parts Disassembly
MFP Electrical
MFP Fan
MFP PL8.2.8 (Fan)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Right Side Cover (page 8-40)
5. Remove the Rear Cover (page 8-43).
6. Disconnect P/J503 from the LVPS and release the Fan harness from the clamp

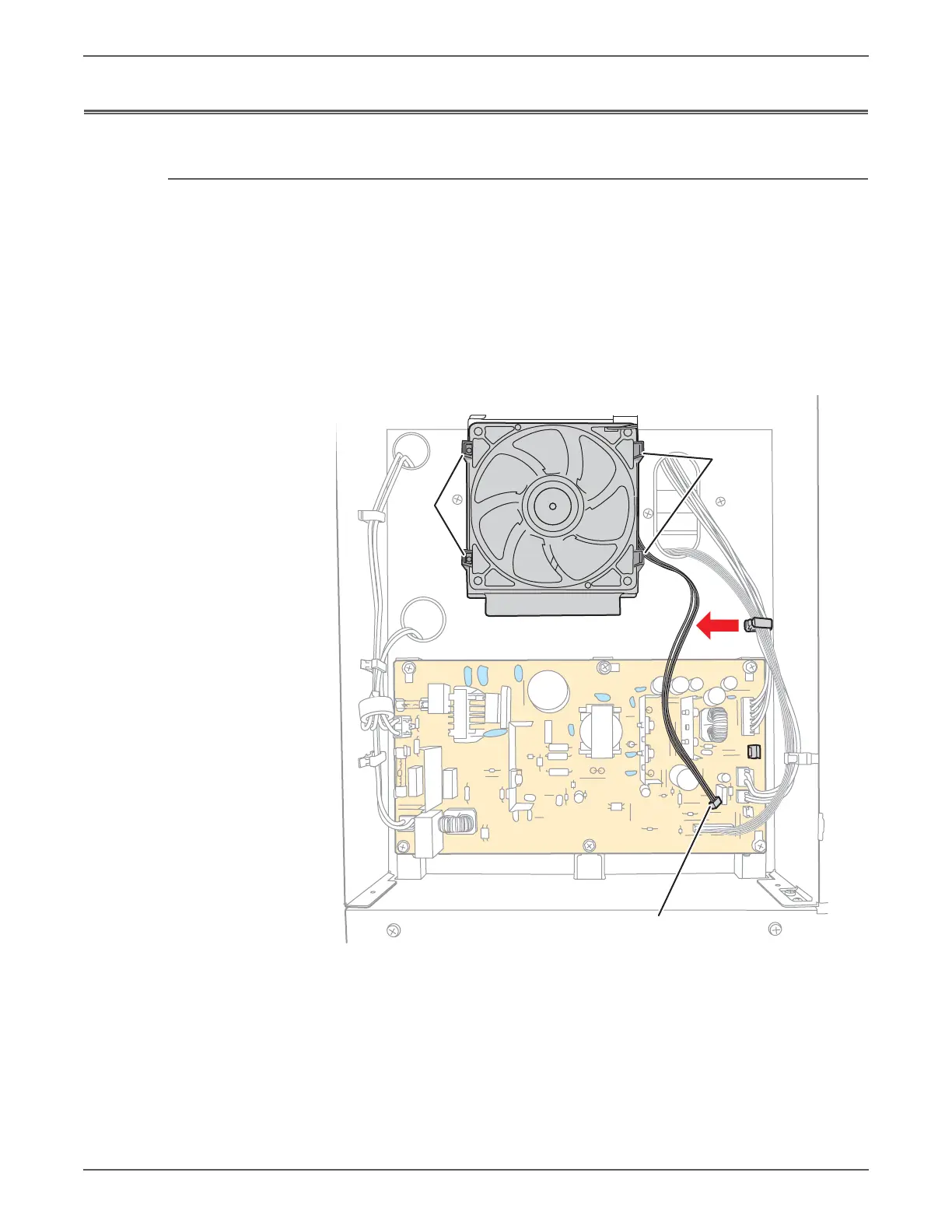

7. Release the 4 hooks of the fan duct to remove the FAN from the chassis.
Hooks
Hooks
s6500-329
P/J503
